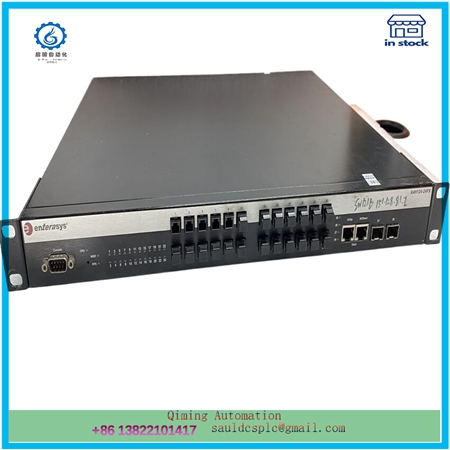

ENTERASYS A4H124-24FX P0973JN

Description

The ENTERASYS A4H124-24FX P0973JN switch is a high-performance network device typically used to build efficient and reliable large-scale network environments, such as local area networks (LANs) or data center networks. The following is a detailed introduction to the switch:

1、 Basic Overview
Product series: A4 series switches belonging to Enterasys (now part of Extreme Networks).
Model: A4H124-24FX P0973JN.
Type: Fast network switch, supporting fiber management.
2、 Main characteristics
High speed performance:
The exchange capacity is as high as 17.6 Gbps (some data shows 12.8 Gbps, which may vary depending on different configurations or versions), making it easy to handle large amounts of network traffic and ensure efficient data transmission.
The throughput reaches 9.5 Mpps, ensuring high-speed packet forwarding.
Large capacity port:
Provide 24 10/100 Ethernet ports to meet the connectivity needs of various devices.
Additionally equipped with 4 Gigabit Ethernet uplink ports, supporting high-speed uplink connections, suitable for bandwidth intensive applications.
Multi layer packet classification and priority queuing:
Support multi-layer packet classification and priority queuing function, capable of prioritizing processing according to different network traffic, ensuring high priority transmission of critical business data.

Stackability:
It has stacking capability and can easily expand network capacity and port count by stacking multiple switches, making it very suitable for building and managing large networks. Up to 8 A4 switches can be interconnected in a single stack, creating a virtual switch that provides up to 140.8 Gbps capacity.
Fiber optic expansion function:
Support fiber optic connections, allowing for the expansion of network range and distance through fiber optic cables, increasing network flexibility and coverage.
Security:
Provides a range of security features, such as port security, authentication (supporting IEEE 802.1X, MAC address authentication), access control lists (ACLs), etc., to protect the network from unauthorized access and attacks.
3、 Management and Remote Access
Supports multiple remote management protocols, such as SNMP, RMON, Telnet, HTTP, TFTP, SSH, etc., making it convenient for network administrators to configure and manage remotely.
Provides advanced management features such as system log support and port mirroring, which helps with network troubleshooting and performance monitoring.
4、 Physical specifications and environmental parameters
Dimensions: Width 17.4 inches, Depth 14.5 inches, Height 1.7 inches.
Weight: Approximately 10.8 pounds.
Power requirements: AC 120/230 volts (50-60 hertz), power consumption operation of 66 watts.
Environmental parameters: Supports operation within a wide temperature and humidity range, with a minimum operating temperature of 32 ° F and a maximum operating temperature of 122 ° F, and a humidity range of 5% -95% (non condensing).
5、 Compliant with standards and certifications
Compliant with multiple IEEE network standards, such as IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, etc., ensuring device compatibility and interoperability.
Has passed multiple international safety and electromagnetic compatibility certifications, such as VCCI, BSMI, CISPR Level 22, EN 61000-3-2, EN 61000-3-3, etc.
6、 Other information
Manufacturer’s warranty: Provides limited lifetime warranty service, providing users with long-term usage protection.
In summary, the ENTERASYS A4H124-24FX P0973JN switch is a powerful and high-performance network device suitable for various network environments, especially those that require high-speed data transmission and large-scale port expansion.
