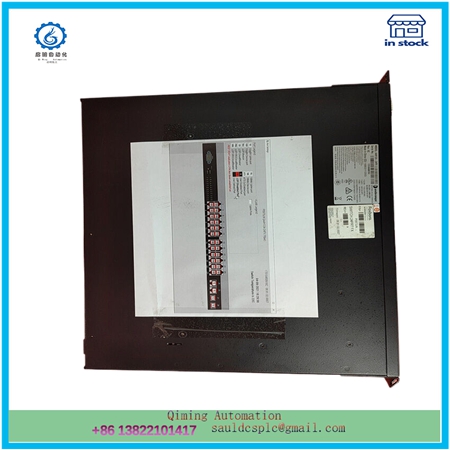

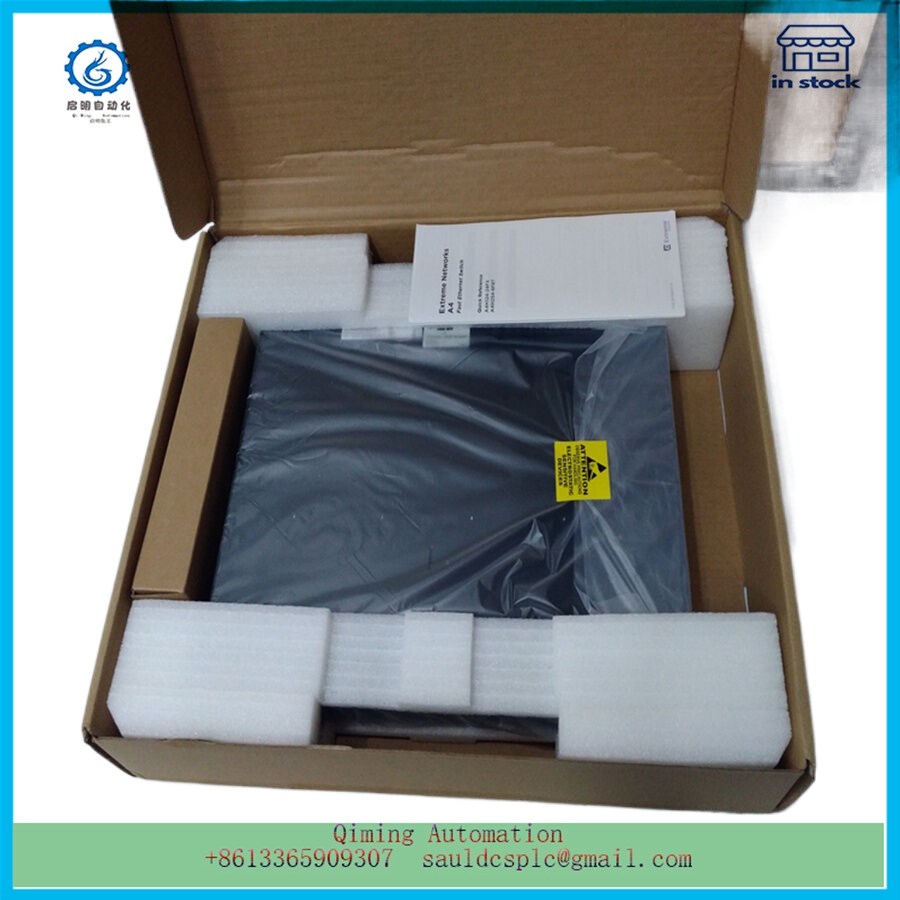

ENTERASYS A4H124-24FX P0973JN Switch

Description

ENTERASYS A4H124-24FX P0973JN Switch Details

1、 Model and basic information
Model: ENTERASYS A4H124-24FX P0973JN
Manufacturer: Original Enterasys (now part of Extreme Networks)
Type: 24 port fiber management switch, belonging to the A4 series
2、 Functional characteristics
High speed performance:
The exchange capacity can reach up to 17.6 Gbps (some sources mention 12.8 Gbps, which may vary depending on different configurations or versions), making it easy to handle large amounts of network traffic and ensuring efficient data transmission.
Provide 24 10/100 Ethernet ports and 4 Gigabit Ethernet uplink ports to meet the connection needs of various devices, and support high-speed uplink connections.
Multi layer packet classification and priority queuing:
Ability to prioritize transmission of critical business data based on different types of network traffic.
Stackability:
Having stacking capabilities, it is easy to expand network capacity and port count by stacking multiple switches, making it very suitable for building and managing large networks. Up to 8 A4 switches can be interconnected in a single stack, creating a virtual switch that provides up to 140.8 Gbps capacity and up to 384 Gbps.
Fiber optic expansion function:
Supports fiber optic connection, allowing for the extension of network range and distance through fiber optic.
Advanced security features:

Provides a series of security features, such as port security, authentication, and access control lists (ACLs), to protect the network from unauthorized access and attacks.
3、 Performance parameters
Throughput: 9.5 Mpps (million packets per second)
MAC address table size: 16K entries
Giant framework support: 9216 bytes
Remote management protocols: SNMP 2, SNMP, RMON, Telnet, HTTP, TFTP, SSH, etc
Encoding algorithm: Secure Socket Protocol Layer (SSL)
Authentication methods: RADIUS, SSH 2
Compliant with standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, etc
4、 Application scenarios
Enterprise network: used to build, expand, and manage local area networks (LANs) and wide area networks (WANs) within an enterprise, connecting various network devices such as computers, servers, routers, switches, firewalls, etc.
Data center: In a data center environment, it is used to connect servers, storage devices, and network devices, build a high-performance and highly available data center network, and support large-scale data processing and cloud computing applications.
Educational institutions: schools, universities and other educational institutions can use the switch to expand the campus network and support students and faculty to access the Internet, online learning and resource sharing.
Medical institutions: used to build medical information systems that support the network transmission of patient records, medical equipment, and medical data.
Industrial automation: In industrial environments, connecting industrial control systems, sensors, and actuators enables automated control of production lines.
Financial institutions: connect automatic teller machines (ATMs), transaction terminals, and financial data centers to support secure financial transactions.
5、 Other information
Power supply: Internal power supply, optional redundant power supply system (RPS)
Dimensions and weight: width 17.4 inches, depth 14.5 inches, height 1.7 inches, weight 10.8 pounds
Environmental parameters:
Working temperature range: 32 ° F to 122 ° F
Humidity range: Operating 5% -95% (non condensing)
Storage temperature range: -40 ° F to 158 ° F
Warranty service: Limited lifetime warranty
The above information is based on a comprehensive compilation of multiple sources, ensuring the accuracy and comprehensiveness of the information. However, as product specifications may update over time, it is recommended to consult the latest official documentation or contact the manufacturer for the most accurate information before actual purchase or deployment.
