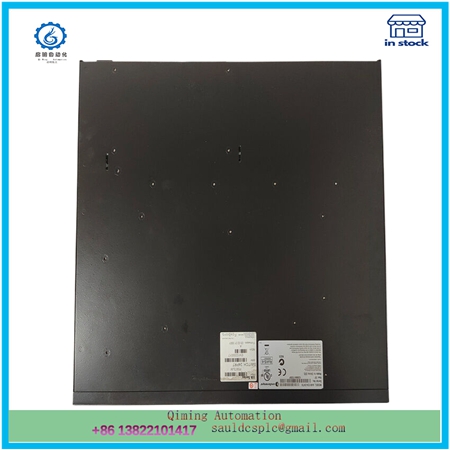

Extreme Networks A4H124-24TX switch

Description

The Extreme Networks A4H124-24TX switch is a feature rich and high-performance enterprise level switch widely used in enterprise networks, data centers, and virtualization environments. The following is a detailed analysis of the switch:

1、 Product Overview
Brand and Model: Extreme Networks A4H124-24TX
Application scenarios: Enterprise networks, data centers, virtualization environments
Features: Supports high-speed data transmission, stacking function, rich network management, and security features
2、 Technical specifications
Port configuration:

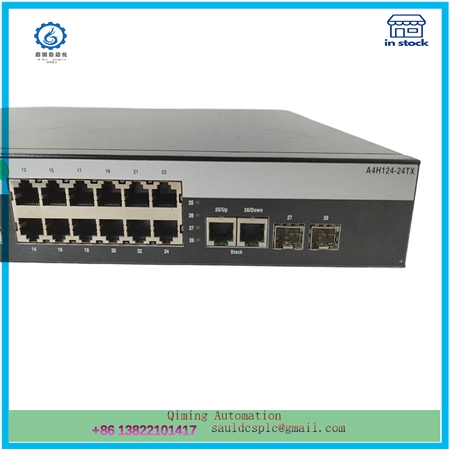

Featuring 24 ports of 10/100/1000Mbps, it supports high-speed data transmission and meets various network requirements.
Support stacking function, up to 8 switches can be interconnected in a single stack to create a virtual switch, providing up to 140.8Gbps capacity, suitable for large-scale network applications.
Performance parameters:
The exchange capacity is up to 48Gbps, ensuring efficient transmission and processing of data.
Support static routing and RIPv1/v2 routing, making network configuration and management more flexible and efficient.
Power supply and power consumption:

Supports AC 100-240V, 50-60Hz power input, with a maximum power consumption of 40W, and has wide applicability to adapt to different power environments.
Physical specifications:
The external dimensions are 440mm x 220mm x 44mm, with a weight of 3.5kg, making it easy to install and deploy in various environments.
3、 Functional characteristics
Stacking function: With the stacking function, network capacity and performance can be easily expanded to meet the constantly growing network demands.
Network management:
Support Extreme Networks Network Management Suite’s policy manager or standard CLI for network administrators to configure and manage.
Role based architecture enables network administrators to define different roles or profiles to represent different operational groups within the enterprise.
Security:
Provide authentication and security features that can be applied at the port or user level to protect the network from unauthorized access.
Support IEEE 802.1X, MAC address, or network-based authentication to ensure the security of network access.
Quality of Service (QoS):
Powerful QoS capabilities provide robust support for integrated multimedia networks, including Voice over IP (VoIP) and IP video, as well as all types of data intensive applications.
The intelligent queuing mechanism ensures that critical task applications receive priority access to network resources.
Scalability:
A highly scalable architecture supports future network expansion, ensuring that network investments remain effective and competitive in the future.
Lifetime warranty:
All A-series products come with a lifetime warranty, providing long-term support and service assurance.
4、 Application scenarios
Enterprise Network: Used to build a local area network (LAN) within an enterprise, supporting various enterprise applications such as file sharing, email, video conferencing, etc.
Data Center: In a data center environment, it is used to connect servers, storage devices, and other network equipment to ensure high performance and reliability.
Virtualization environment: Supports virtualization technologies such as VMware or Hyper-V to ensure efficient and reliable data transfer between virtual machines.
In summary, the Extreme Networks A4H124-24TX switch is a powerful and high-performance enterprise level switch suitable for various complex network environments. Its rich functional features and high scalability make it an ideal choice for building modern network architectures.
