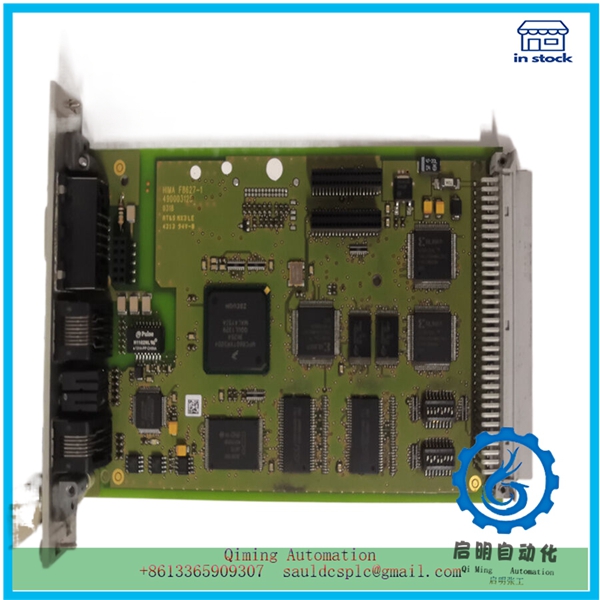

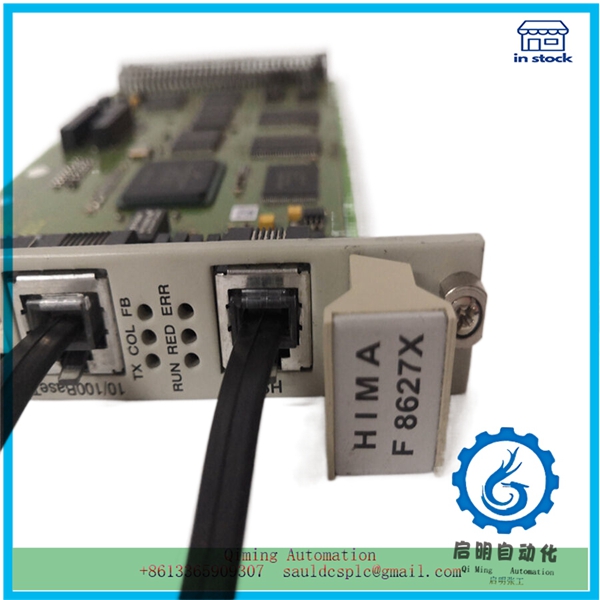

F8627X | HIMA | External Open collector output MODULE

Description

F8627X | HIMA | External Open collector output MODULE

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

From F8627X  8 and 9, it can be seen that the output OUT end of the NPN collector open circuit output circuit is connected to 0V through a switch tube. When the sensor acts, the switch tube saturates and conducts, and the OUT end is connected to 0V, outputting a low-level signal of 0V; The output OUT end of the PNP collector open circuit output circuit is connected to+V through a switch F8627X  tube. When the sensor acts, the switch tube saturates and conducts, and the OUT end is connected to+V, outputting a high-level signal of+V.
3.2 Connection of NPN and PNP output circuits and PLC input modules

3.2.1 NPN collector open circuit output
From the above analysis, it can be seen that the open circuit output of the NPN collector is 0V. When the output OUT end is connected to the PLC input, the current flows out from the input end of the F8627X  and in from the common end of the PLC. This is the form of the leakage type circuit of the PLC, that is, the open circuit output of the NPN collector can only be connected to the leakage type or mixed input circuit form of the PLC
