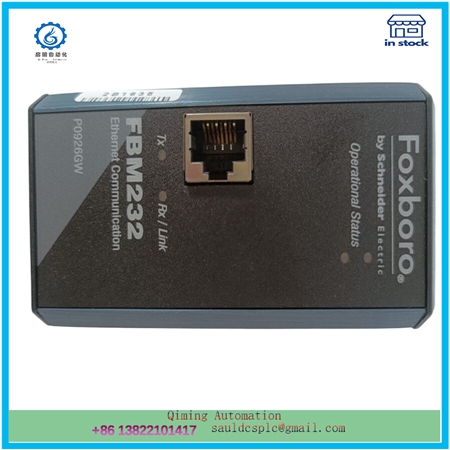

FOXBORO FBM232 P0926GW Ethernet Communication Module

Description

Detailed introduction of FOXBORO FBM232 P0926GW module
1. Overview and main functions of the module
summary:
FOXBORO FBM232 P0926GW is an industrial automation module produced by Foxboro by Schneider Electric and is part of its automation control system. This module is designed for industrial environments, providing input/output functions as a communication interface between field equipment and control systems.

Main functions:

Data acquisition and processing: The FBM232 P0926GW module is capable of collecting digital signals from external sensors, switches, and other devices, and converting them into a format recognized by the control system for subsequent data analysis and processing.
Communication interface: The module supports multiple communication protocols, such as Modbus TCP/IP, EtherNet/IP, etc., which facilitate data exchange and communication with other devices, control systems, or monitoring software.
Real time monitoring and feedback: Provides real-time monitoring function, allowing operators to view the status of digital input channels at any time and take measures as needed.
Programmable Logic: Supports programmable logic, allowing users to define and configure logic functions based on specific application requirements, such as triggering output actions or implementing control strategies.
Alarm function: Trigger an alarm when specific conditions are met to notify the operator or take automatic control measures to ensure the safety and stability of the industrial process.
2. Application scenarios and applicable environments of modules
Application scenario:

The FBM232 P0926GW module is widely used in industrial automation, process control, data acquisition, monitoring, and remote operation fields. This includes but is not limited to industries such as manufacturing, electricity, chemicals, mining, and construction.

Applicable environment:
This module is designed for industrial environments and has high resistance to vibration, pollution, and dust. It can work stably under harsh environmental conditions, ensuring the reliability and accuracy of the system.

3. Technical specifications and parameters of the module
Internal power consumption: ≤ 5W
Power supply method: DC24V; Optional AC/DC85-265V, DC-48V, DC12V
Network interface: RJ45 port supports 10Base-T/100Base-TX adaptive transmission, with a transmission distance of<100 meters; The optical port supports 100Base FX, SC/ST interface connection, and supports single-mode and multi-mode optical fibers
Working temperature: -10 ℃+70 ℃ (wide temperature -40 ℃+75 ℃)
Storage temperature: -45 ℃~+85 ℃
Humidity: 10%~95% without condensation
Installation method: wall mounted or DIN rail mounted
Network redundancy protocol: Supports network redundancy protocols such as O-Ring and MSTP (RSTP/STP)
Protocol support: Modbus TCP/IP, EtherNet/IP, etc
4. Advantages and characteristics of modules
High reliability: Adopting high-quality circuit design and manufacturing processes, ensuring that the system can operate stably under harsh environmental conditions.
Multifunctionality: It integrates multiple functions such as data collection, processing, communication, real-time monitoring, and alarm to meet the various needs of industrial automation systems.
Programmability: Supports multiple programming languages, and users can write programs and customize functions according to their actual needs.
Wide compatibility: Supports multiple communication protocols and network redundancy protocols, facilitating integration and communication with other devices and systems.
Easy to install and maintain: Provides two installation methods: wall mounted and DIN rail mounting, making it easy for users to choose according to their actual situation; Meanwhile, the design of the module is simple and user-friendly, reducing maintenance costs and time.
5. Applicable fields and limitations of modules
Applicable fields:
The FBM232 P0926GW module is suitable for multiple industries, including but not limited to manufacturing, power, chemical, mining, construction, etc. In these fields, it can be used to monitor and control various industrial process parameters, improve production efficiency and product quality.

Limitations:
Although the FBM232 P0926GW module has a wide range of applications and significant advantages, there may be certain limitations in certain specific application scenarios. For example, under certain extreme environmental conditions (such as extreme high or low temperatures, strong electromagnetic interference, etc.), the performance of the module may be affected. Therefore, when selecting and using this module, it is necessary to evaluate and select based on specific application scenarios and requirements. It should be noted that the above information may change with product updates. Please refer to the latest official information for accuracy.
