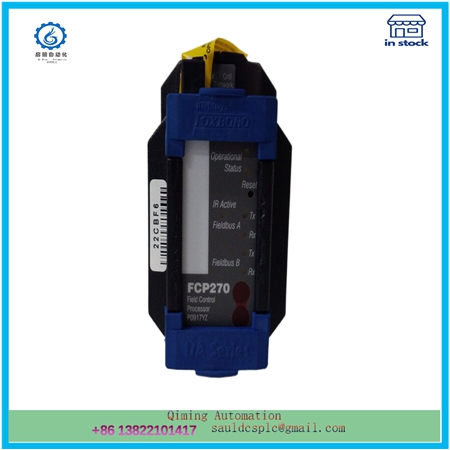

FOXBORO FCP270 P0917YZ field control processor

Description

FOXBORO FCP270 P0917YZ is a field control processor produced by Schneider Electric, which has the following main characteristics and parameters:

essential information:
Product number: P0917YZ
Product type: Field Control Processor 270 (FCP270)

Hardware specifications:
Memory size: 16 MB SDRAM and 32 MB flash memory
Input voltage (redundant voltage): 24 V DC typical value
Power consumption (per non fault-tolerant module): Maximum 8.5 W
Working temperature: 0 to+60 degrees Celsius (+32 to+140 degrees Fahrenheit)
Dimensions (length x width x height): 14.7cm x 5.15cm x 11.4cm
Weight: 0.6 kilograms
Shipping weight: 1.5 kilograms
Functional features:
Perform regulation, logic, timing, and sequential control together with the connected fieldbus module (FBM)
Perform data collection, alert detection, and notification
Supports up to 32 200 series FBMs
Supports up to 128 200 series FBMs with fieldbus expansion module 100 (FEM100)
Supports up to 64 100 series FBMs
No fieldbus communication module required
Connect to grid control network using standard fiber optic 100 Mbps Ethernet
Can work in harsh G3 environments
Using two control modules to provide unique patented fault-tolerant operations and improve reliability
Support time synchronization using optional external time from GPS satellites
Application field:
Widely used in industrial automation, chemical production, power, light industry, metallurgy, environmental protection and other industries
Can be used for fluid pressure measurement and control of liquids, gases, and vapors
Shell and protection:
Using sturdy die cast aluminum casing
FBI200 or FBI100 support both 2 Mbps or 268 Kbps HDLC fieldbus
The protection level is not directly mentioned, but it may have a higher protection level depending on the application environment
Certification and compatibility:
Whether the on-site installation of the casing has passed CE certification is not directly mentioned, but as a product of Schneider Electric, it may comply with relevant certification standards
Compatible with various fieldbus modules and control algorithms, providing control capabilities for various process applications
