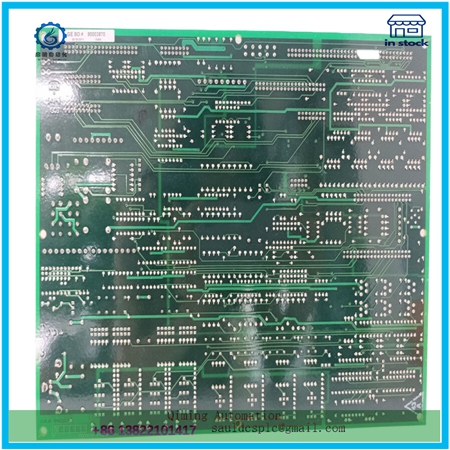

GE DS200TCQCG1BKG RST Overflow Board

Description

GE DS200TCQCG1BKG RST Overflow Board

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

The DS200TCQCG1BKG RST Overflow Board was manufactured by General Electric, for use in the Mark V Series of turbine control systems.

DS200TCQCG1BKG Technical Specifications

ManufacturerGeneral Electric

SeriesMark V

Part NumberDS200TCQCG1BKG

Functional AcronymTCQC

Functional DescriptionRST Overflow Board

PCB CoatingNormal Coating

Functional Revision 1B

Functional Revision 2K

Artwork RevisionG

Product Description

The GE RST Overflow Board DS200TCQCG1BKG is populated with 24 jumpers and 3 40-pin connectors. It also has 3 34-pin connectors and 1 16-pin connector. The ID assigned to the 16-pin connector is JC. The IDs assigned to the 40-pin connectors are JFF, JE, and 6PL. The GE RST Overflow Board DS200TCQCG1BKG also is populated with heat sinks that dissipate heat. Consider the following information about the heat sinks before you install and remove the board. The heat sinks protrude from the board and so the board cannot be placed within 3 inches of other boards in the interior of the drive, if the boards are sandwiched together. This is to allow for clearance for the heat sinks and to give the heat sinks the air flow required to dissipate the extra heat. Another consideration is that the heat sinks might damage other boards and components when you arrange the board in the drive. You might accidentally scratch another board or knock delicate components from another board. Also, be careful to avoid scraping the board against other components and knocking off the heat sinks.
