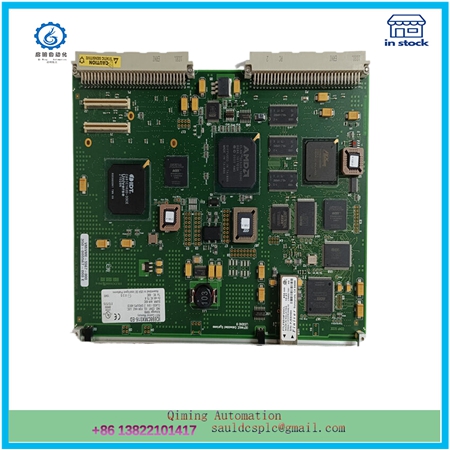

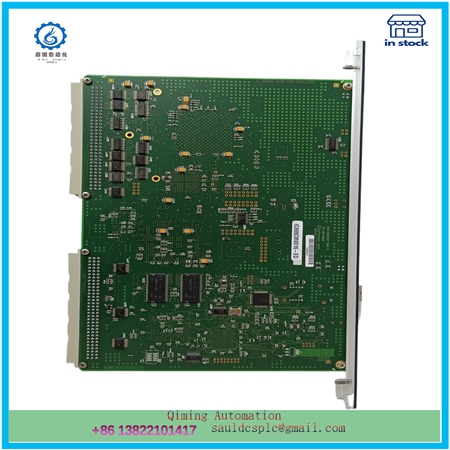

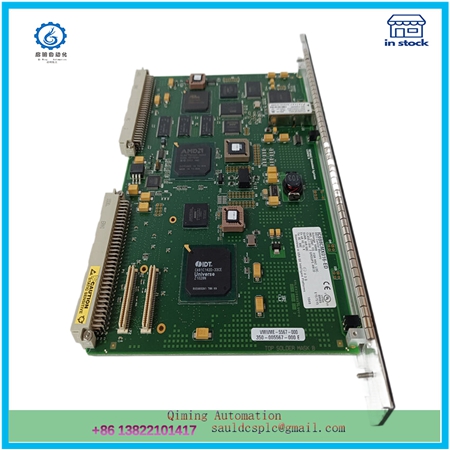

GE IC698CMX016-ED VMIVME-5567-000 350-005567-0000 E

Description

The GE IC698CMX016-ED VMIVME-5567-000 350-005567-0000 E module is a powerful control memory exchange module that is part of the PACSystem RX7i platform and is currently produced by Emerson Automation (previously produced by GE Intelligent Platform). The following is a detailed analysis of this module:

1、 Module Overview
Main function: This module is mainly used to provide deterministic data sharing between PLC and compatible devices through fiber optic networks, using reflective storage technology.
Physical properties:
Specification: 56 * 58 * 52mm
Color: Black
Weight: 1.56kg
Origin: United States

2、 Technical specifications
Memory capacity: Equipped with 16MB SDRAM and parity check function.
Working voltage and current: The working voltage is+5VDC, provided by the power supply, and the current requirement is 1.8 amperes.
Communication interface:
Adopting LC type fiber optic ports, supporting data transmission on multimode fiber optic media.
The maximum transmission distance is 300 meters (or 984.25 feet) and the transmission speed is 2.12 Gbaud.
The supported dynamic packet sizes range from 4 to 64 bytes, with a maximum network transfer rate of 43 MB/second (4-byte packets) to 174 MB/second (64 byte packets).
Network capability: capable of communicating with up to 256 nodes in each network and supporting redundant transmission mode operations.
3、 Installation and Configuration
Installation location: It needs to be installed on the main frame and connected to slot 3 or 4.
Configuration requirements: It must be installed on an RX7i CPU with firmware version 2.00 or higher, a powered RX7i CPU rack, and configured using Proficy Machine Edition – Logic Developer PLC version 4.5 or higher.

4、 Status indication
LED status indicator lights: The front panel is equipped with LED status indicators such as OK, configuration, self owned data, and signal detection, used to display the operation and communication status of the module.
5、 Application field
This module is widely used in ports, heating, gas, water supply, sewage treatment, metallurgy and other fields, providing strong support for industrial automation control.
6、 Price and Purchase
The price may vary due to factors such as market activity, purchase quantity, and selected specifications. The specific price needs to be negotiated and confirmed with the merchant.
It can be purchased through professional industrial automation spare parts suppliers or online platforms, such as Xiamen Xiongba E-commerce Co., Ltd. Zhangzhou Branch, Shenzhen Changxin Automation Equipment Co., Ltd., etc.
In summary, the GE IC698CMX016-ED VMIVME-5567-000 350-005567-000 E module is a high-performance and highly reliable control memory exchange module that provides powerful data sharing capabilities for the industrial automation control field.
