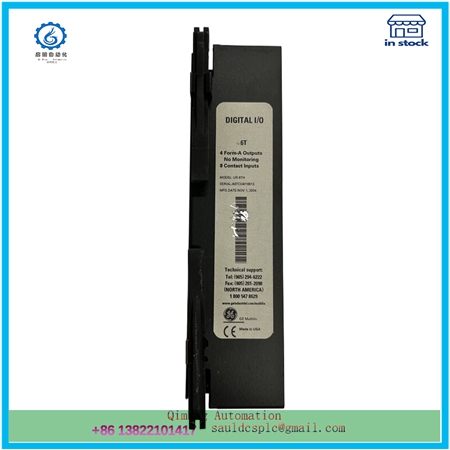

GE UR6TH digital I/O module

Description

The GE UR6TH module is a highly integrated control device, and here is a detailed description of it:

1. Application Fields

The GE UR6TH module is suitable for industrial automation, process control, and network communication systems. In the field of industrial automation, it can be used in scenarios such as production line control, robot operation, and equipment monitoring. In the field of process control, it is suitable for industries such as chemical, pharmaceutical, and food processing that require precise control of production processes. Additionally, it can serve as the core component of network switches and routers, enabling high-speed data transmission and processing.

2. Communication Interfaces

* **Ethernet interface**:The UR6TH GE module is equipped with four independent Ethernet interfaces and an integrated network switch, supporting various Ethernet-based protocols. Two of the interfaces are programmable and support different Ethernet-based protocols such as Ethernet and Profinet, allowing the PLC to connect to control two different types of networks.
* **Serial interface**:The module also has a serial interface, which completes the vehicle connection and can be further expanded with additional network and fieldbus interfaces through the PLC’s dual expansion ports.

III. Functional Features

* **Remote configuration and diagnosis**:The GE UR6TH module supports remote library function, allowing remote configuration and diagnosis using specific architectures (such as Rockwell Automation Integrated Architecture), which improves the system’s maintainability and flexibility.
* **Scalability**:The module provides a variety of scalable input/output (I/O) options, and users can select the appropriate I/O modules based on their actual needs to achieve flexible configuration and expansion.
* **Monitoring and measurement**:The GE UR6TH module integrates monitoring and measurement functions, which can monitor the real-time operation status of the power system in real-time and provide rich measurement data to help users better understand the operation of the power system.

IV. Compatibility

The GE UR6TH module not only supports traditional legacy systems, but also easily integrates into today’s advanced network architectures, providing users with flexible solutions. At the same time, it provides a soft architecture that can handle future needs, ensuring the sustainability and upgradability of the system.

5. Other Features

* **Installation Method**: The GE UR6TH module is usually installed in a “plug-and-play” manner, simplifying the deployment and maintenance process of the system.
* **Origin and Warranty**: This module is made in the United States and usually comes with a one-year warranty service.

In summary, the GE UR6TH module is a powerful and versatile control device that is suitable for a variety of industrial automation and process control scenarios. Its built-in communication interfaces, remote configuration and diagnostics capabilities, scalability, and monitoring and measurement features make it a promising solution for industrial automation applications.
