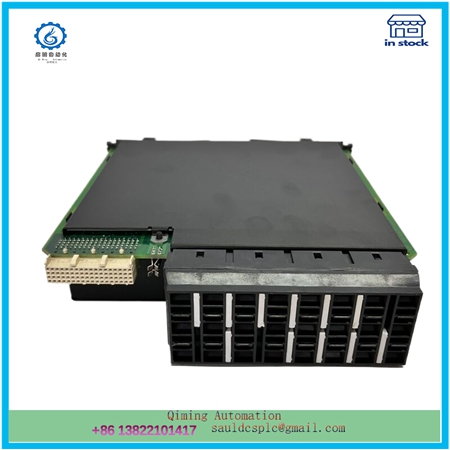

GE UR6UH digital I/O module

Description

The GE UR6UH module is a digital input/output module manufactured by GE Multilin. Here is a detailed description of the module:

One, Product Overview

The GE UR6UH module is designed for GE Multilin series protection relays and integrates 6 digital input and 6 digital output channels for controlling and monitoring various auxiliary equipment. The module is based on the Microchip PIC32MX7

2. Technical Specifications

1. **Digital Input**:
– Channel Count: 6 channels
– Type: Optically Isolated
– Logic Level: 24V DC
– Input Impedance: 470kΩ

2. **Digital Output**:
– Number of Channels: 6
– Type: Relay Output
– Contact Capacity: 250V AC/DC, 10A
– Output Delay: <2 ms

3. **Communication Interface**: RS-232

4. **Physical Parameters**:
– Size: 133 mm x 75 mm x 25 mm
– Weight: 200 g

5. **Environmental Parameters**:
– Operating temperature: 0°C to 55°C
– Storage temperature: -20°C to 70°C
– Humidity: 5% to 95% (non-condensing)

III. Functional Features

1. **Multi-channel Input**: Provides multiple digital input channels to receive and acquire discrete state signals from different devices.
2. **High-speed Sampling**: Has high-speed sampling capability to ensure precise data acquisition.
3. **Wide Input Range**: Supports a wide input voltage range to accommodate different types of digital signals.
4. **Signal Filtering**: Includes built-in signal filtering to stabilize signals and provide reliable input data.
5. **Programmability**: May support programmable functions, allowing users to customize configuration and programming to meet specific application requirements (specific programmability depends on official documentation or consultation with manufacturers).

IV. Application Fields

1. **Industrial Automation and Control Systems**: used for industrial process automation, production line control, equipment monitoring, etc.
2. **Power System Protection**: used for the protection of transformers, lines, generators, motors, and busbars.
3. **Energy Production and Distribution**: used to monitor the status of power equipment and transformers at power plants and energy distribution centers.

5. Other Information

1. **Product Certification**:GE products are usually subject to strict quality control and certification to ensure compliance with international standards and industry norms.
2. **After-sales Service**:Manufacturers usually provide comprehensive after-sales service, including technical support, repairs, and replacements.
3. **Purchase Channels**:GE UR6UH modules can be purchased through GE’s official website, authorized agents or distributors.

In conclusion, the GE UR6UH module is a powerful and stable digital input/output module that is suitable for a variety of industries, including industrial automation, power system protection, and energy production and distribution. For more information or to purchase, please visit the official website of GE or contact its authorized distributors.
