GE VMIVME-7807RC VME-7807RC-424001 350-93007807-424001 K processor

Description

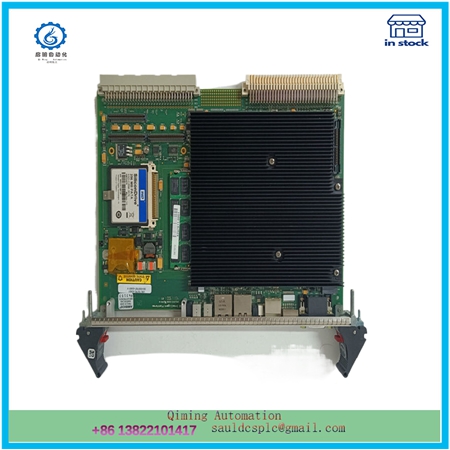

GE VMIVME-7807RC (also known as VME-7807RC-424001 350-93007807-424001 K) is a high-performance single board computer (SBC) designed based on the Pentium M processor family, with excellent thermal characteristics and a wide range of application scenarios. The following is detailed information and features about the product:

Processor and Performance:
This product integrates Intel’s Pentium M processor and offers three frequency options: 1.1 GHz, 1.6 GHz, or 1.8 GHz.
Up to 2 megabytes of advanced L2 cache can be configured, providing excellent data processing capabilities.
Working at a frequency of up to 1.8 GHz, it provides high bandwidth and powerful processing power, making it ideal for I/O intensive applications.
Memory and storage:
Supports DDR SDRAM of up to 1.5 Gbyte, providing sufficient memory space to support complex applications.
The optional ECC support enhances the integrity and reliability of data.
The auxiliary IDE supports up to 1 GB of bootable CompactFlash, providing additional storage space for the system.
Interface and Connection:
Provide two different dual Gigabit Ethernet configurations, supporting VITA 31.1 (Gigabit Ethernet on VME 64 x backplane).
Additional front panel support includes one 10/100BaseT Ethernet port, two USB 2.0 ports, SVGA, one high-performance serial port, and one PS/2 connection.
The rear I/O support includes two additional USB 2.0 ports, three serial ports, serial ATA, IDE, and DVI interfaces.
Provide four asynchronous 16550 compatible serial ports and four universal serial bus (USB) 2.0 connections.
Operating system support:
Supports multiple operating systems, including Windows 2000, Windows XP, QNX, Linux, and VxWorks, providing flexible deployment options.
Dimensions and physical properties:
Following the VME physical specifications of the 6U board, it can be compatible with any standard chassis that accepts any type of board.
The size is approximately 170mm x 105mm x 32mm (according to reference article 4), and the weight is approximately 120g.
