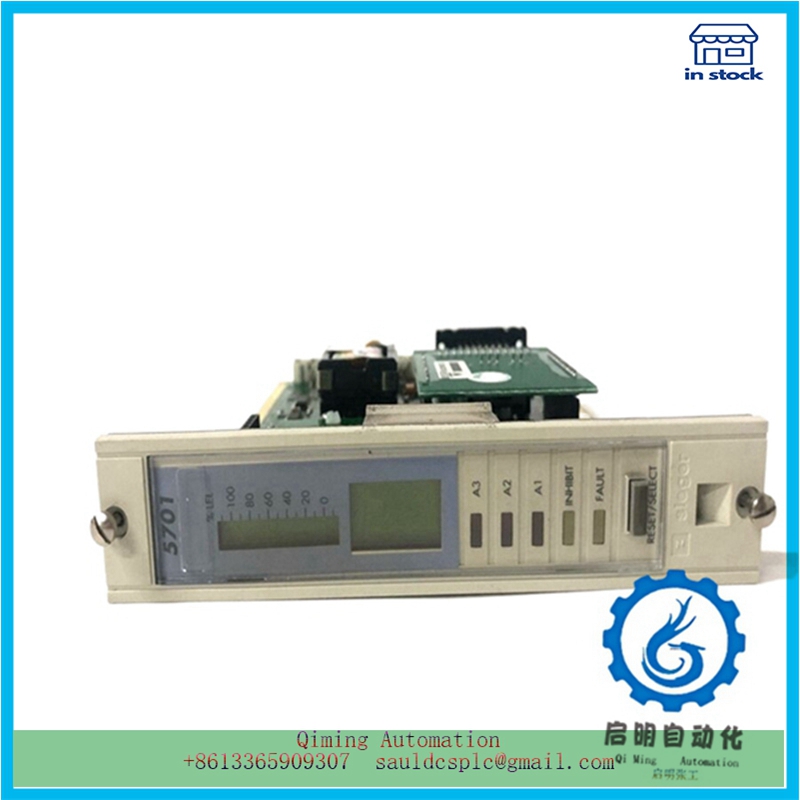

HONEYWELL 05701-A-0301 Function and installation instructions

Description

HONEYWELL 05701-A-0301 Function and installation instructions

Wiring specification for 05701-A-0301 control cabinet control equipment
1. Selection of PLC control cabinet model
The network cabinet of Suzhou Foxconn Electric PLC project is 600 * 600 * 1900mm in size. We can choose different cabinets based on the number of PLC points and other components. Generally, we choose a 600 * 600 * 1900mm control cabinet. The following mainly discusses the wiring specifications for control cabinets and establishes a unified standard.
2. Functions and installation instructions of main electrical components
Layout of components
Usually, we use the following types of original documents:
1. Switching power supply
2. Small circuit breaker
3. PLC module
4. Safety barrier
5. Relay
6. Wiring terminals
7. Guide rail
8. Wire groove
9. Wire
Below is an explanation of the purpose, model, size, and arrangement of the above components.
05701-A-0301 Small circuit breakers
The circuit breaker models we choose are generally the DZ47 series, with brands mainly including Delixi and Chint. The DZ47 series small circuit breaker is a current limiting high breaking small circuit breaker with dual protection of overload and short circuit. It is suitable for circuits with AC 50Hz/60Hz, rated working voltage 230V/400V, rated current up to 63A and below, and is used for line overload and short circuit protection.
DZ47-63/□
Number of poles
Rated current of shell frame level
05701-A-0301 Design code
Plastic shell circuit breaker
Classified by pole number: a. Single pole (1P) circuit breaker b. Two pole (2P) circuit breaker c. Three pole (3P) circuit breaker d. Four pole (4P) circuit breaker. Classified by rated current:
6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A. Rated working voltage:
The single pole is 230V/400V, and the two pole, three pole, and four pole are 400V. We usually choose a two pole circuit breaker, but if the cabinet space is small, we can also consider using a single pole circuit breaker, which can save space and cost.
