Honeywell 10105/2/1 SAI-1620m 16 Channels Analog Input Module

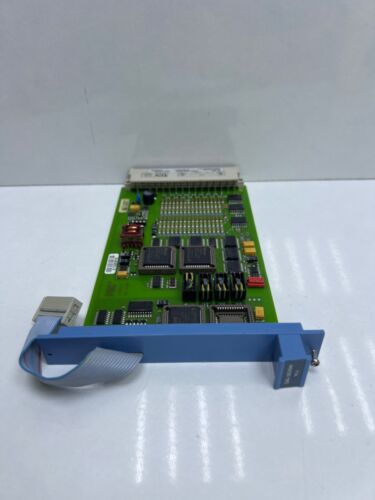

The **Honeywell 10105/2/1 SAI-1620m Rev 1.1** is a 16-channel analog input module that is typically used in control systems for industrial automation. Such modules are critical for interfacing with various sensors and devices, collecting analog signals, and sending this data to a control system for processing and monitoring.

### Key Features:
1. **16 Channels**: This module can accept inputs from up to 16 different analog sensors or devices simultaneously, allowing for extensive data collection in a compact form factor.

2. **Signal Types**: The module is generally capable of handling various signal types, including voltage (e.g., 0-10V) and current (e.g., 4-20 mA), which are common in process control and automation applications.

3. **High Accuracy and Resolution**: Analog input modules like the SAI-1620m are designed to provide high accuracy and resolution for precise data representation, which is crucial in critical control environments.

4. **Communication Interface**: The module typically integrates with other control components through communication protocols such as PROFIBUS, Modbus, or Honeywell-specific protocols, depending on the system architecture.

5. **Diagnostic Features**: Many analog input modules include diagnostics to monitor the health of input channels, detecting faults such as signal loss or out-of-range input conditions.

Installation and Maintenance:

– **Installation**:
– Follow Honeywell’s installation guidelines closely to ensure proper mounting and electrical connections.
– Ensure that the module is compatible with the control system it’s being integrated into.

– **Wiring**:
– When connecting sensors, pay attention to wiring diagrams provided by Honeywell to avoid potential electrical issues.

– **Configuration**:
– The module may require configuration to match the signal types of the connected sensors. This could be done through software settings or hardware jumpers/switches.

– **Calibration**:
– Periodic calibration and testing of the module and connected sensors should be performed to ensure accuracy in measurements.

– **Monitoring**:
– Regularly check LED indicators or console diagnostics to ensure all channels are functioning correctly.

### Resources for Further Information:
1. **User Manual**: Consult the user manual or technical documentation for the Honeywell SAI-1620m module. It provides in-depth details on installation, configuration, and troubleshooting.

2. **Honeywell Technical Support**: For specific technical questions or troubleshooting, reaching out to Honeywell’s support team can provide invaluable assistance.

3. **Industry Forums and Communities**: Engaging with professionals in forums and user communities may offer insights from similar applications, troubleshooting tips, and operational best practices.

4. **Training and Tutorials**: Honeywell may offer training materials or workshops that could be beneficial in fully understanding the capabilities and optimal use of their products.

If you have any further questions or need specific guidance on the Honeywell 10105/2/1 SAI-1620m Rev 1.1 or its applications, feel free to reach out!
