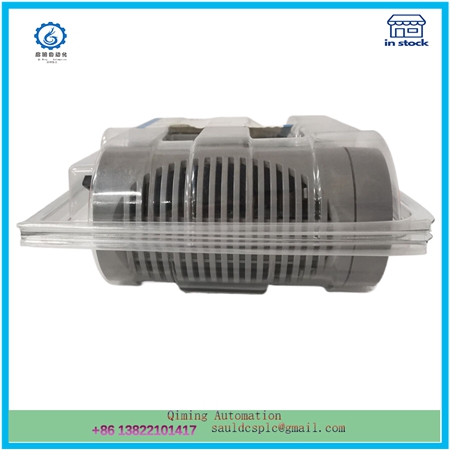

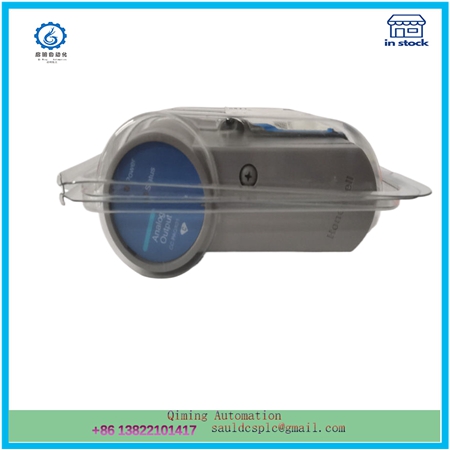

HONEYWELL CC-PAOX01 Analog output module

Description

The detailed introduction of the HONEYWELL CC-PAOX01 module is as follows:

1、 Main functions, characteristics, and advantages

Main function: The HONEYWELL CC-PAOX01 module is an analog output module designed specifically for industrial automation control applications. Its core function is to convert control signals into analog or digital signal outputs, thereby achieving precise control and monitoring of industrial equipment.
Features and advantages:
High precision output: Using high-quality electronic components and advanced manufacturing processes, ensuring that the module can stably output high-precision signals even in harsh working environments.
Multiple output types support: The module supports various types such as analog output and digital output, providing users with flexible configuration and usage options.
Easy to program and debug: Equipped with user-friendly programming interfaces and debugging tools, it reduces the development difficulty and time cost for users.
Multiple protection functions: equipped with safety mechanisms such as overcurrent protection and overvoltage protection, ensuring the stability and safety of equipment operation.
Easy to expand: Supports the expansion of multiple ports and modules, and can flexibly adapt to control needs of different scales.
2、 Application scenarios and applicable environments

The HONEYWELL CC-PAOX01 module is widely used in the field of industrial automation, including but not limited to manufacturing, chemical plants, energy production, environmental monitoring, water treatment, and pharmaceutical industries. It is particularly suitable for scenarios that require precise control and monitoring of various process variables, such as controlling valves, executing process control, adjusting motor speed, and monitoring and adjusting key parameters such as temperature, pressure, and flow.

3、 Specification parameters and interface definitions

Specification parameters:
The working voltage range is usually 18-30V DC.
The maximum current consumption is 100mA.
Has an isolation voltage of 500V AC (between output and backplane).
The working temperature range is from -20 ° C to+60 ° C.
The storage temperature range is from -40 ° C to+85 ° C.
Can operate normally in a relative humidity environment of 5% to 95% (non condensing).
Interface definition: Modules typically exchange and communicate data with other devices or systems through standard industrial communication protocols such as Hart, FOUNDATION Fieldbus, Profibus, etc.
4、 Packaging, transportation, and installation instructions

Packaging: The module adopts shock-absorbing and anti-static packaging materials to ensure that it is not damaged during transportation.
Transportation: It is recommended to use professional logistics channels for transportation to ensure the safe arrival of modules.
Installation: Before installation, carefully read the product manual and follow the instructions in the manual for proper installation. During the installation process, attention should be paid to avoiding static damage and ensuring that all connections are correct and error free.
