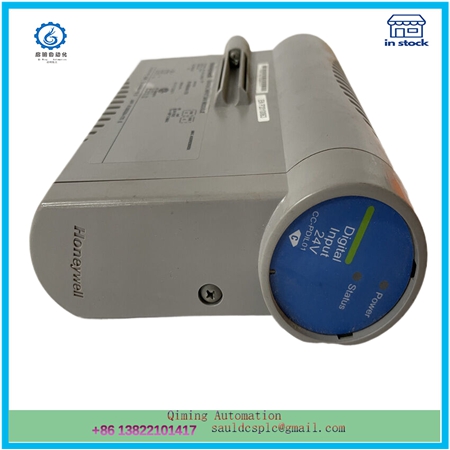

HONEYWELL CC-PDIL01 Digital Input Module

Description

Regarding the HONEYWELL CC-PDIL01 module, the following is a detailed summary of information:

1、 Basic information
Manufacturer: Honeywell
Product number/model: CC-PDIL01
Product type: Digital input module
2、 Technical specifications
Rated voltage: 24VDC
Logic level:
Logic 1:15VDC or 2.5mA (minimum)
Logic 0: 5VDC or 1mA (maximum)
Input current:

From load voltage L+(no load) to maximum value of 90mA
From backplane bus 5VDC maximum value 130mA
Electrical isolation: photoelectric isolation (on-site power and logic power), 500VAC, 1-minute isolation group 4
Working temperature: allowable working temperature 55 ° C
Cable length: 500m shielded and 300m unshielded
3、 Product features
Input type: Low Voltage Digital Input, Leakage/Source Input (IEC Class I Leakage Input)
Color: Black (based on some supplier information)
Structural form: modular structure, suitable for general automated manual installation
4、 Application scenarios
As part of the Programmable Logic Controller (PLC), the CC-PDIL01 module is used to receive digital signals from field devices such as button switches, travel switches, limit switches, and sensors.
These signals are converted into standard level signals that PLC can process through modules, thereby achieving industrial automation control.

5、 Supplier Information
The CC-PDIL01 module is provided by multiple automation equipment suppliers, including but not limited to Shenzhen Changxin Automation Equipment Co., Ltd., Xiamen Zhongxinda Automation Equipment Co., Ltd., and Xiamen Xinxiangtong Technology Co., Ltd.
Different suppliers may offer different prices and services, and the specific prices may vary depending on factors such as product participation in events, purchase quantity, or selected specifications.
6、 Precautions
When purchasing and using the CC-PDIL01 module, it is recommended to carefully check the product specifications and technical requirements to ensure they meet the actual application requirements.
If you need further technical support or after-sales service, please contact the supplier or manufacturer directly.
In summary, the HONEYWELL CC-PDIL01 module is a powerful digital input module suitable for various industrial automation control scenarios. By providing accurate digital signal input functions, it provides strong support for achieving efficient and reliable industrial automation control.
