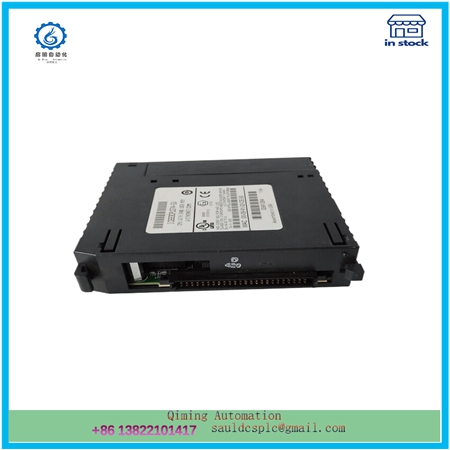

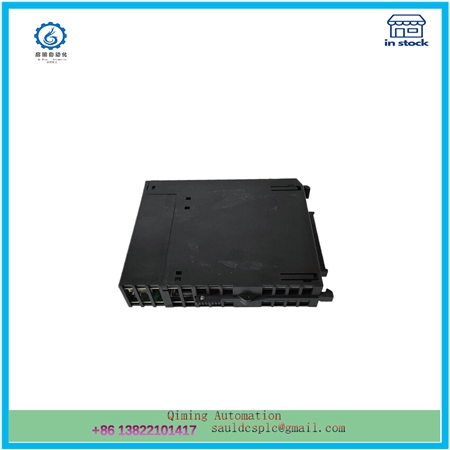

IC693CPU374 | GE | Single-Slot CPU Module

Description

Detailed description and introduction of GE IC693CPU374 module

Basic Overview
The GE IC693CPU374 module is a core component of a high-performance programmable logic controller (PLC) produced by General Electric (GE), widely used in the fields of industrial automation and process control. As part of the 90-30 series PLC, the IC693CPU74 module not only has powerful processing capabilities, but also integrates multiple communication interfaces and functional modules to meet the complex and ever-changing industrial control needs.

characteristic
Powerful processing capability: The module is equipped with a built-in microprocessor, using AMD SC520 type 80386EX processor, with a built-in processing speed of 133 MHz and a typical scan rate of 0.15 milliseconds per 1K Boolean contact logic, ensuring fast response and efficient execution.
Large capacity memory: The IC693CPU374 module has 240KB of user memory and supports storage of programs, configurations, and historical data. The program memory can be configured according to application requirements, including a register memory that can be configured within the range of 128 to 32640 words, as well as configurable memory for analog input and output.
Multiple communication interfaces: This module is equipped with two Ethernet communication ports, supporting a transmission speed of 10/100 Mbps, and has automatic sensing function, which facilitates communication with programming workstations, human-machine interfaces (HMI), monitoring and data acquisition (SCADA) systems, and other processors. In addition, it also supports RS485 communication interface, allowing communication through SNP and SNPX protocols.
High reliability design: The IC693CPU374 module uses highly reliable electronic components to ensure stable operation in high-intensity industrial environments. At the same time, it supports hot swapping function, allowing module replacement during system operation and reducing downtime.

Rich functional modules: In addition to basic CPU functions, the GE IC693CPU74 system also supports various specialized modules, such as motion control module, temperature control module, safety control module, etc., to meet specific application requirements. In addition, it also includes counter and timer modules for performing counting and timing functions to monitor and control specific processes.
Small size and easy installation: The module is compact in size, making it easy to install and use, while complying with IP20 protection level and 2/ZONE 2 specifications, ensuring safe and stable operation in various industrial environments.
function
Logic control: allows users to write and execute logic programs, perform various operations based on input states, such as switch control, process control, etc.
Multi channel input/output: Provides multiple digital and analog input/output channels for connecting sensors, actuators, and other devices to achieve data acquisition and control signal output.
Data Processing and Operations: Supports processing and analysis of sensor data and system status, performing complex mathematical operations and logical judgments.
Alarm and event handling: When the system encounters abnormalities or meets specific conditions, it can trigger alarms, record events, or notify operators, improving the security and reliability of the system.
Remote monitoring and access: Supports remote monitoring and access functions, making it convenient for users to remotely manage and maintain the system.
Application scenarios
The GE IC693CPU374 module is widely used in industrial automation control systems, such as machine tools, automated production lines, intelligent buildings, power systems, motor control, heating and electric furnaces, lighting control, industrial processing equipment, and other fields. In these applications, the IC693CPU374 module achieves precise control and efficient management of complex industrial processes with its powerful processing capabilities, rich communication interfaces, and flexible configuration options.

In summary, the GE IC693CPU374 module has become a leader in the field of industrial automation and process control due to its excellent performance, high reliability, and wide range of application scenarios.
