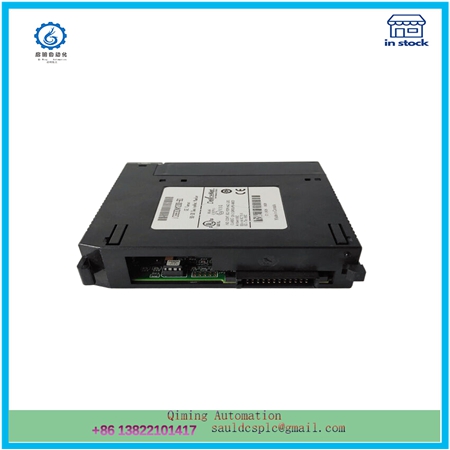

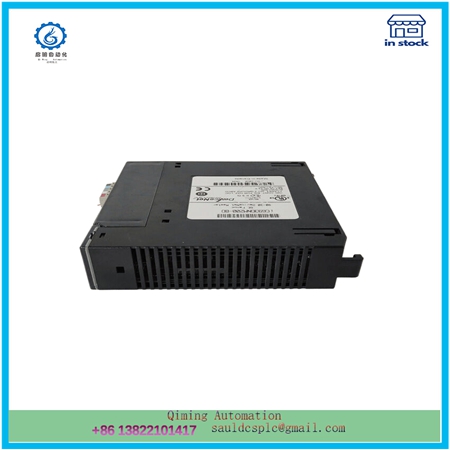

IC693DNM200-BD | GE | DeviceNet master module

Description

GE IC693DNM200-BD module detailed introduction
1. Main functions, features, and advantages of the module
Main functions:
GE IC693DNM200-BD is a DeviceNet master module designed specifically for industrial automation. As part of the GE Fanuc Series 90-30 Programmable Logic Controller (PLC), it is primarily responsible for communicating as a master on the DeviceNet network, controlling and monitoring slave devices connected to the network. This module supports high-speed data transmission and can process and respond to control commands in real-time, ensuring the efficient operation of the system.

Features and advantages:

High speed communication: Supports all standard data rates of DeviceNet protocol, including 125K, 250K, and 500K baud, to meet the requirements of high-speed data transmission.
Main station function: As the main station of the DeviceNet network, it can automatically transmit data, exchange data with slave devices, monitor status, and send control commands.
Configuration and Diagnosis: Provides configuration tools and diagnostic functions to facilitate users in setting network parameters, configuring slave devices, and monitoring network status, simplifying system configuration and troubleshooting processes.
Modular design: Easy to work with other GE series 90-30 PLC modules, such as input/output modules, CPU modules, etc., to achieve larger and more complex control systems.
Industrial grade: Designed as industrial grade equipment with high reliability, anti-interference, and protection characteristics, suitable for harsh industrial environments.
2. Application scenarios and applicable objects of the module

Application scenarios:
The GE IC693DNM200-BD module is widely used in the field of industrial automation, especially in scenarios that require real-time control and monitoring of a large number of slave devices, such as manufacturing production lines, process control systems, mechanical automation, etc. It can effectively improve the automation level and operational efficiency of the system, and reduce the cost of manual intervention.

Applicable to:

Enterprises that need to build or upgrade DeviceNet network control systems.
Industrial automation projects that require high real-time performance, reliability, and scalability of the system.
Automated production lines and control systems in industries such as manufacturing, chemical, power, and metallurgy.
3. Technical specifications and interfaces of the module
Technical specifications:

Rated voltage: 12-24V DC (positive logic)
On state voltage drop: 0.3V DC
Switch response time: up to 0.5 milliseconds
Output points: 32, arranged in groups of 4, with each group covering 8 points
Output current: 0.5 amperes per point, 4 amperes per group, and a maximum current of 3 amperes per group of common pins
Surge current: 5.4 amperes, lasting for 10 milliseconds
Working temperature range: 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit)
Storage temperature range: -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit)
Interface:

DeviceNet interface: a single DeviceNet terminal that supports all standard data rates
RS232 interface: a 9-pin D-shell female port used as a module service port
4. Cost effectiveness and performance parameters of modules
cost performance:
The GE IC693DNM200-BD module has a high cost-effectiveness in the field of industrial automation due to its high performance, high reliability, and modular design. Although the initial investment may be relatively high, the improved automation level, increased operational efficiency, and reduced long-term maintenance costs it brings result in a higher overall return on investment.

Performance parameters:

Data transmission capability: Supports high-speed data transmission to meet the requirements of real-time control systems.
System Scalability: Easy to use with other GE series 90-30 PLC modules to achieve system expansion and upgrades.
Reliability: Industrial grade design with high reliability and anti-interference ability, ensuring stable operation of the system.
Usability: Provides configuration tools and diagnostic functions to simplify system configuration and troubleshooting processes.
In summary, the GE IC693DNM200-BD module has broad application prospects and high cost-effectiveness in the field of industrial automation due to its powerful functions, high-speed communication capabilities, easy to expand design, and high reliability.
