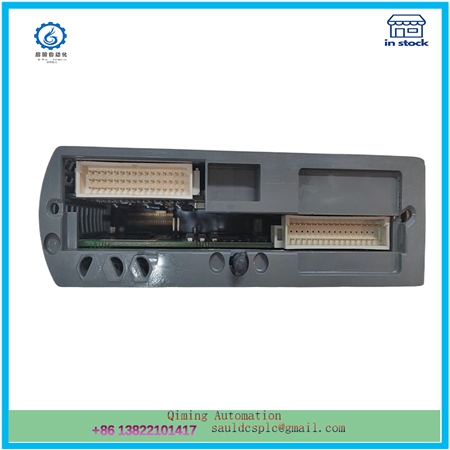

ICS TRIPLEX 9451 module

Description

The ICS 9451 module (usually more accurately referred to as ICS TRIPLEX 9451 or ICS TRIPLEX T9451) is a widely used module in industrial control systems, which may have multiple types and functions, such as digital input/output modules, analog input/output modules, or communication interface modules. Here are some detailed introductions to the ICS TRIPLEX 9451 module:

1、 Basic Information
Brand and Series: ICS TRIPLEX, Belonging to Trusted ® System series.
Manufacturer: Originally a product of Emerson in the UK, it has now become a part of Honeywell.
2、 Functional Features
High reliability: The ICS TRIPLEX 9451 module is designed for high reliability applications, meeting the requirements for reliability and stability in industrial automation systems. It may adopt Triple Modular Redundancy (TMR) technology to ensure that even if a single component fails, the output can still operate normally.
Security: The module adopts special security technologies such as TMR to provide additional security and fault tolerance.
Flexibility: Supports flexible configuration and programming, allowing users to customize according to specific application needs and achieve multiple control logics and functions.
Multiple Input/Output: Multiple input and output interfaces may be equipped to support communication and data exchange with other devices and systems.
Quick response: With the ability to respond quickly, it is used for real-time processing of control instructions and data.
Scalability: Supports scalability, allowing users to add additional modules or interfaces as needed to meet future expansion needs.
Fault diagnosis: With fault diagnosis function, it is used to detect and report faults or abnormal states in the system, facilitating maintenance and troubleshooting.

3、 Types and Applications
Digital input module: used to receive signals from external sensors, switches, or other digital devices, and convert these signals into digital format for use in control or monitoring systems. Usually has multiple digital input channels, which can simultaneously receive and process multiple input signals.
Digital output module: Provides multiple digital output channels and can process multiple output signals simultaneously. Supports a rated voltage of 24/48VCC to meet the needs of different applications.
Analog module: used to receive and send analog signals, usually used to measure and control physical quantities such as temperature, pressure, flow rate, and drive actuators. Supports a wide range of measurement and input signal types, such as voltage, current, etc., with high precision.
Communication interface module: Connected to the control system through industrial communication interfaces (such as Modbus, Profibus, etc.) to achieve data exchange and communication with the main control system.
4、 Application Fields
The ICS TRIPLEX 9451 module is widely used in various industrial automation and control systems, such as chemical, power, manufacturing, and other fields, to achieve real-time monitoring and control of physical quantities, as well as communication and data exchange with other devices and systems.

5、 Summary
The ICS TRIPLEX 9451 module, as a high-performance industrial automation component, is favored by the market for its high reliability, safety, flexibility, and wide range of application areas. Users can choose the appropriate module type based on specific application requirements, and implement multiple control logics and functions through flexible configuration and programming. At the same time, the module also has good fault diagnosis and scalability, making it convenient for users to maintain and expand.
