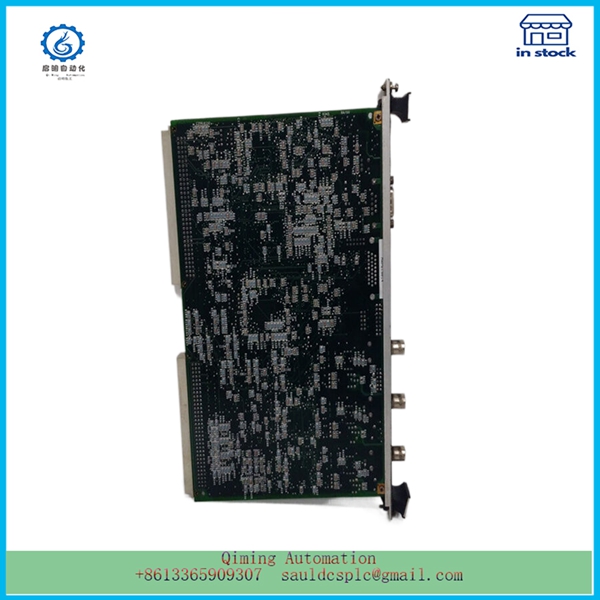

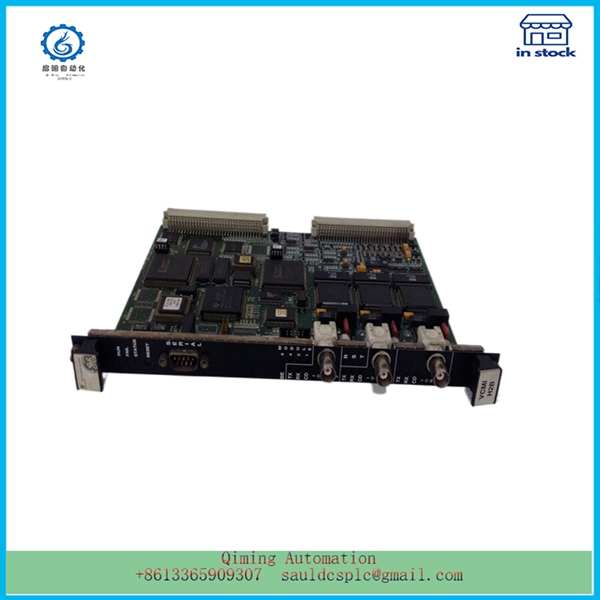

IS215VCMIH2BE IS200VCMIH2BEE | GE | power ripple module

Description

IS215VCMIH2BE IS200VCMIH2BEE | GE | power ripple module

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

IS215VCMIH2BE IS200VCMIH2BEE we have:

We provide considerate service and complete parts

① Promptly reply you within 24 hours；

② 100% quality assurance, 1-year warranty；

③ Best services, reasonable price；

④ Have been in the line for many years, has a good reputation；

⑤ We will ship the items within 3 working days after the payment is reached；

⑥ All the goods will be tested before shipment；

⑦ Packing in professional anti-static bag；

The ripple and noise of the module power supply are AC components superimposed on the DC output voltage. IS215VCMIH2BE and IS200VCMIH2BEE measure the ripple and noise at rated load and room temperature. For switch type AC/DC module power supplies, the output ripple voltage is a small pulse with high-frequency components in the system, so peak to peak value is usually measured instead of effective value (RMS). The measured value is expressed in millivolt peak to peak (mVp-p). For example, when the ripple peak to peak voltage of an AC/DC module power supply is 50mV, its RMS value is very low, only 5mV. However, whether it can be used in a certain system must be further considered.

Because the measured ripple contains high-frequency components, special measurement techniques must be used to obtain accurate measurement results. In order to measure all high-frequency harmonics in the ripple peak, a 20MHz bandwidth oscilloscope is generally used.

Secondly, when conducting ripple measurements, great attention must be paid to IS215VCMIH2BE and IS200VCMIH2BEE to prevent the introduction of erroneous signals into the testing equipment. The ground clamp of the probe must be removed during measurement, because in a high-frequency radiation field, the ground clamp will receive noise like an antenna, thereby interfering with the measurement results. Use a measurement method with a probe with a grounding ring to eliminate interference.
