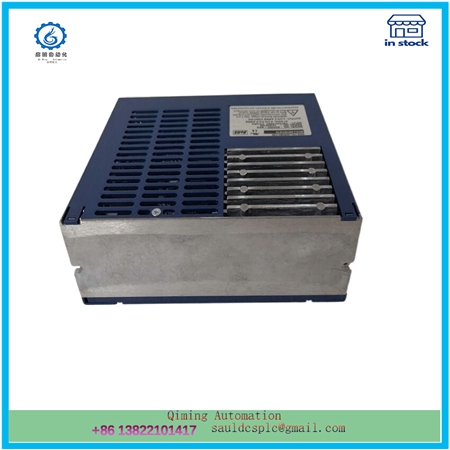

KOLLMORGEN 65WKS-M310/12-PB

Description

KOLLMORGEN 65WKS-M310/12-PB

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

The 65WKS-M310/12-PB is a retired drive from the 60wks Analog Servo Amplifier Series retired by Kollmorgen. It features a 3 X 80- 220/50 … 60Hz +max. 10% rated supply voltage and a 310 V rated DC-link voltage. The 65WKS-M310/12-PB can hold a ballast circuit pulse power of 5.4 kW and a 200 W ballast circuit continuous power reading.

The Kollmorgen 65WKS-M310/12-PB is an analog servo amplifier. It is designed for 3-phase AC input at 80 to 220 Volts AC. The installed load at rated current for the amplifier is 2.6 kVA. The DC-link voltage rating is 310 Volts DC. The continuous rated 4-quadrant output current is 12 Amps. The peak output current is 30 Amps. The maximum AC fuse size recommended for use with the 65WKS-M310/12-PB is 30 Amps. The switch-on threshold of the ballast circuit is 385 Volts and the switch-off threshold of the ballast circuit is 365 Volts. The pulse power of the ballast circuit is 5.4 kilowatts and the continuous power is 200 Watts. The overvoltage switch-off threshold is 410 Volts. The minimum motor inductance is 3 millihenry. Clock frequency of the output stage is 1 kilohertz.
