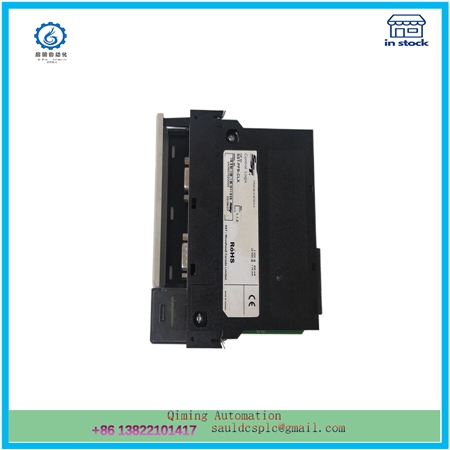

MOLEX SST-PB3-CLX Backplane Module

Description

The MOLEX SST-PB3-CLX module, especially the SST-PB3-CLX-RLL communication module, is a key component used in the field of industrial automation. The following is a detailed analysis of the module:

1、 Module Overview
1. Product positioning

The SST-PB3-CLX-RLL communication module is a slot based communication module designed specifically for the Rockwell ControlLogix platform, supporting Profibus DP master and slave modes.
2. Design and manufacturing

This module is designed and manufactured by Molex, ensuring high quality and reliability of the product.
2、 Key features and functions
1. Communication interface

Equipped with a PROFIBUS D-sub female module with 9 pins for communication.
Each module has a communication port that supports the PROFIBUS-DP master and/or slave protocol for exchanging data with other PROFIBUS compatible devices.
2. Compatibility and Application

PROFIBUS scanners available for Allen Bradley 1756 backplane systems and Honeywell PlantScape systems.
Helps to enable communication links between CLX processors and remote I/O devices located on the PROFIBUS network.

3. Data transmission mode

Supports two data transfer modes: direct mode and paging mode.
Direct mode allows mapping of PROFIBUS data in I/O processor images.
Paging mode allows access to PROFIBUS data from user-defined data spaces set to Logix CPU memory.
4. Display and indication

Equipped with an LCD panel and three LED indicator lights below, they are used to display the communication, system, and normal status of the module, making it easy for users to quickly identify the working status and potential issues of the module.
3、 Physical and environmental characteristics
1. Weight and dimensions

This module weighs 430 grams, and the specific size information may vary due to product versions or updates. It is recommended to refer to the official data manual.
2. Working temperature range

The working temperature range is between 0 and 60 degrees Celsius, ensuring stable operation under various environmental conditions.
4、 Integration and Configuration
1. Integration convenience

Attached is its Additional Configuration File (AOP), which allows for easy integration into the ControlLogix system using RSLogix 5000 software.
5、 Market and Price
1. Market supply

Provided by multiple automation equipment vendors, such as Shenzhen Changxin Automation Equipment Co., Ltd. and Xiamen Yingyi Automation Technology Co., Ltd., ensuring the wide availability of products.
2. Price information

The price may vary due to factors such as merchants, promotional activities, and purchase quantities. For example, the quotation for Shenzhen Changxin Automation Equipment Co., Ltd. starts at ¥ 3952.00, and it is recommended to directly contact the merchant for specific price inquiries.
6、 Summary
The MOLEX SST-PB3-CLX module, especially the SST-PB3-CLX-RLL communication module, is a powerful and stable industrial automation communication component. By supporting the Profibus DP protocol, this module can efficiently exchange and communicate data with other compatible devices, improving the overall performance and reliability of the system. For industrial automation systems that require efficient and reliable communication, the SST-PB3-CLX-RLL communication module is undoubtedly an ideal choice.
