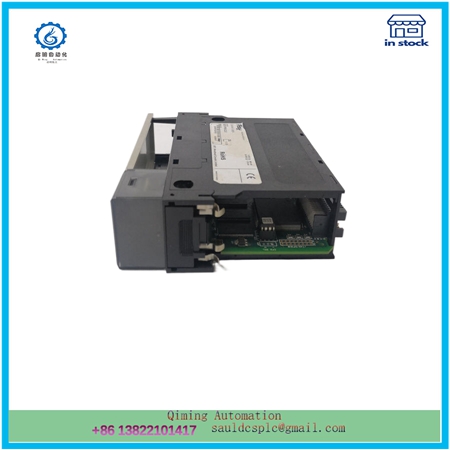

MOLEX SST-PB3-CLX PAC/PLC Communication Module

Description

The MOLEX SST-PB3-CLX module is an advanced module designed specifically for industrial automation, with multiple functions and characteristics, widely used in various industrial scenarios. The following is a detailed introduction to this module:

Function and Features
Communication function:
The SST-PB3-CLX module is typically used as a Profibus scanner module, supporting both Profibus DP master and slave modes, and enabling efficient data exchange with other Profibus compatible devices.
This module is equipped with a PROFIBUS D-sub female module with 9 pins for communication, supporting various standard transmission speeds such as 9600, 19200, 31.25k to 12M baud, etc.
It can be directly integrated with Allen Bradley’s 1756 ControlLogix backplane system and Honeywell’s PlantScape system, enabling communication links between CLX processors and remote I/O devices located on the Profibus network.
Data processing and display:
The module is equipped with an LCD panel and three LED indicator lights (COMM, SYS, OK) to display the communication status, system status, and normal operation status of the module, helping users quickly identify the working status and potential issues of the module.
Supports direct mode and paging mode for data exchange. Direct mode allows mapping of Profibus data in I/O processor images, while paging mode allows accessing Profibus data from user-defined data spaces.
Flexible configuration and programming:
The SST PROFIBUS configuration tool can be used for configuration and programming, supporting multiple control modes and communication protocols such as Modbus RTU, Modbus TCP, etc., enhancing system compatibility and flexibility.
Support multiple different control modes, such as manual control, automatic control, etc., which can be selected and configured according to actual needs.
High performance and stability:

Designed for industrial environments, it has good stability and reliability, and can operate stably for a long time under harsh conditions.
The working temperature range is between 0 and 60 degrees Celsius, ensuring stable operation under various environmental conditions.
Advantages and highlights
High performance: Supports multiple standard transmission speeds to ensure efficient data exchange.
High stability and reliability: Designed specifically for industrial environments, it can operate for long periods of time under harsh conditions.
Flexibility: Supports multiple communication interfaces and protocol options to meet different application requirements.
Easy to operate and maintain: Provides a simple and user-friendly human-machine interface, making it convenient for users to set parameters, control operations, and troubleshoot.
Applicable scenarios and objects
Industrial automation: suitable for various industrial automation applications such as robot control, automated production lines, data acquisition and analysis, visual systems, 3D printers, etc.
Industrial equipment: It can connect various industrial equipment, such as sensors, actuators, and PLCs, to achieve data exchange and control between devices.
Industrial control system: suitable for industrial control systems (DCS), PLC, HMI, SCADA systems, etc., helping to achieve data exchange between different communication protocols, connecting and integrating equipment from different manufacturers.
Industry applications: Used in multiple industries such as power, water treatment, sewage treatment, manufacturing, transportation, building automation, metallurgy and mining, food and beverage production, etc., to monitor and control various equipment and processes, achieving automation and intelligence.
Diagram and image
As providing images or diagrams directly is not feasible in text responses, it is recommended to visit Molex’s official website or relevant industrial automation product catalogs to obtain detailed images and diagrams of the SST-PB3-CLX module. These resources typically include information such as the appearance of the product, installation guidelines, wiring diagrams, etc., which helps to have a more intuitive understanding of the module.
