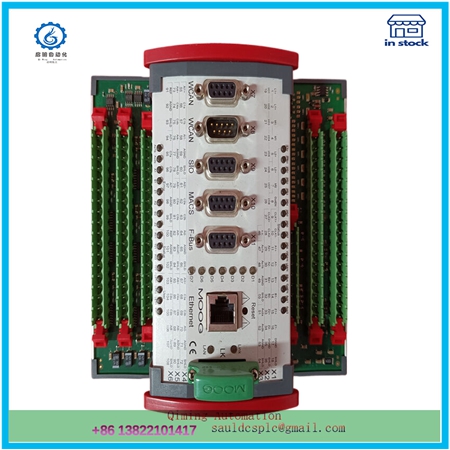

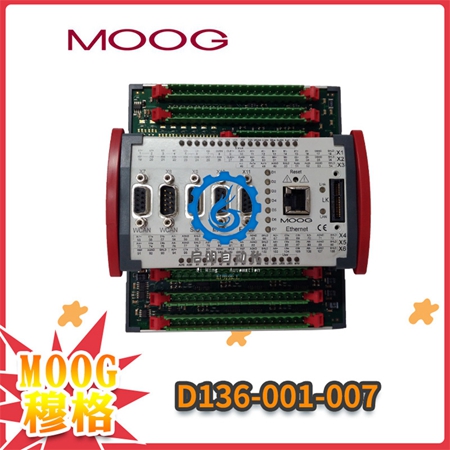

MOOG D136-001-007 Servo Controller

Description

MOOG D136-001-007 module is a high-performance automation control module widely used in industrial automation and control systems. The following is a detailed introduction to this module:

1、 Basic information
Brand and model: MOOG D136-001-007
Type: Automation control module, specifically servo controller (MSC)
Applicable fields: Industrial automation and control systems
2、 Technical specifications
Processor: Based on PowerPC, 32-bit, RISC architecture, with floating-point units
Memory: 4 MB RAM; 4 MB flash EEPROM (data maintenance typically up to 10 years)
Communication interface: Supports Profibus DP slave interface, facilitating data exchange and remote monitoring with other devices or systems
Installation and dimensions: NS 35/7.5 mounting rails (DIN top cap rails) in accordance with EN 50022, dimensions 160 x 170 x 85.5 mm (accessory dimensions may vary)
Temperature range: Operating temperature from+5 ° C to 55 ° C, storage temperature from -25 ° C to+70 ° C
Relative humidity: 10% to 95% (non condensing)
Operating height: Maximum 2000 meters (6500 feet); Storage/transportation up to 3000 meters (9800 feet)

3、 Functional characteristics
Programmability: Supports free programming, programming using the IEC 61131 development environment MACS (MOOG Axis Control Software) to meet user specific needs
Multi axis control: The controller structure can be freely defined to achieve fast and accurate multi axis control (such as position, speed, and force), specifically designed to provide closed-loop control of up to 30 axes for speed and position
Integrated PLC function: Integrate PLC function to achieve data processing, algorithm execution, and logical decision-making, improving system automation level
Input/Output Interface: Provides analog and digital input/output interfaces, supports high-resolution analog input/output, and handles complex multi axis functions
Status monitoring and diagnosis: equipped with status monitoring and fault diagnosis functions, helping users discover and solve problems in a timely manner
Scalability: Supports connecting M3000 expansion modules through an expansion bus, adding additional digital or analog input/output functions
4、 Application scenarios
The MOOG D136-001-007 module is particularly suitable for industrial automation fields that require precise control due to its high performance and versatility. It can be used to control various electric and hydraulic drives, achieving fast and accurate closed-loop control. In addition, its modular structure and universal standards make system installation and configuration convenient and flexible, suitable for various application scenarios.

5、 Summary
In summary, the MOOG D136-001-007 module is an automation control module that integrates high performance, programmability, and multifunctionality. It plays an important role in industrial automation and control systems with advanced processors, abundant memory resources, flexible communication interfaces, and powerful control functions.
