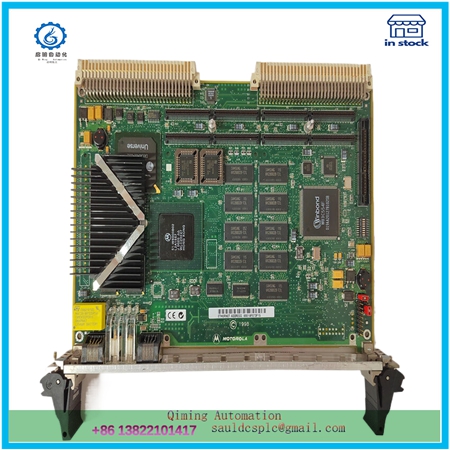

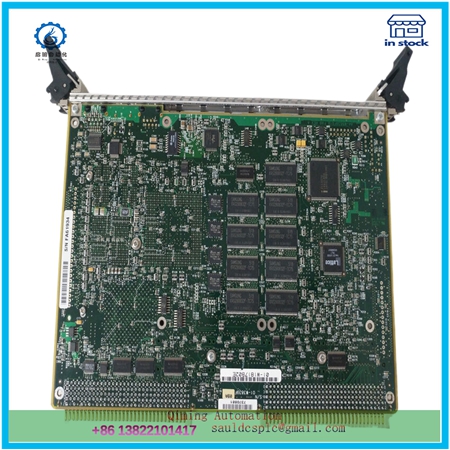

MOTOROLA MVME2434 VME Processor Module

Description

MOTOROLA MVME2434 is a high-performance embedded processor module widely used in industrial automation, embedded computing, and communication devices. The following is a detailed introduction to this module:

1、 Basic information
Manufacturer: Originally produced by Motorola (later acquired by Freescale Semiconductor and now affiliated with NXP Semiconductor).
Type: Embedded processor module
Application areas: industrial automation, embedded control systems, data acquisition and processing, communication equipment, testing and measurement instruments, traffic control systems, medical equipment, aerospace applications, energy management, etc.
2、 Technical specifications
Processor architecture: PowerPC based processors provide powerful computing power and efficient performance.
Operating system support: Typically running real-time operating systems (RTOS) or Linux based on UNIX, providing users with a flexible development and deployment environment.
Data processing capability: Equipped with a 32-bit microprocessor, 32 KB/32 KB L1 Cache, and 1MB back L2 cache, it can meet various data processing and storage needs. At the same time, it supports onboard ECC SDRAM of up to 32 to 512 megabytes, ensuring data integrity and reliability.
Interface and Bus Support: Provides advanced VME bus interfaces for seamless connection with other devices and systems. In addition, it also supports multiple communication interfaces, such as Ethernet, RS-232, RS-422, RS-485, etc., to meet different communication needs.

3、 Features and Design
Industrial grade design: The MVME2434 module is designed for industrial environments, with durability and reliability, and can adapt to harsh working conditions.
Multi tasking support: may support multitasking operating systems, allowing for simultaneous processing of multiple tasks and processes.
Scalability: Supports slots or interfaces, making it easy to connect to other modules or expand functionality.
Remote management and monitoring: Supports remote management and monitoring functions, making it easy to maintain and adjust without human intervention.
Low power design: Considering the power requirements in industrial environments, low-power design has been adopted to improve energy efficiency and reduce operating costs.
4、 Application domain examples
Industrial automation: used for monitoring and controlling industrial production processes, including manufacturing, chemical, petrochemical and other fields.
Embedded control system: suitable for various embedded control systems, such as machine control, automation equipment, etc.
Data collection and processing: used in data collection systems to collect and process sensor data, instrument data, etc.
Communication equipment: In the communication industry, MVME2434 can be used for control and data processing of communication equipment.
Testing and measuring instruments: used for data processing and control of testing and measuring instruments in scientific research, laboratories, and engineering fields.
5、 Heat dissipation and power consumption management
Heat dissipation performance: Motorola has fully considered heat dissipation issues in the design and production of MVME2434, which may include integrating heat sinks or fans on modules to help with heat dissipation. The design of the module may also include temperature monitoring function to take appropriate measures in case of system overheating.
Power management: The power consumption of MVME2434 depends on multiple factors, including processor speed, memory size, power consumption of other components on the board, and operating status (such as idle state, full load running state, etc.). Motorola has adopted low-power technology in its design to reduce power consumption and improve energy efficiency.
In summary, MOTOROLA MVME2434 is a powerful and well-designed embedded processor module suitable for use in various industrial environments that require high-performance computing and control.
