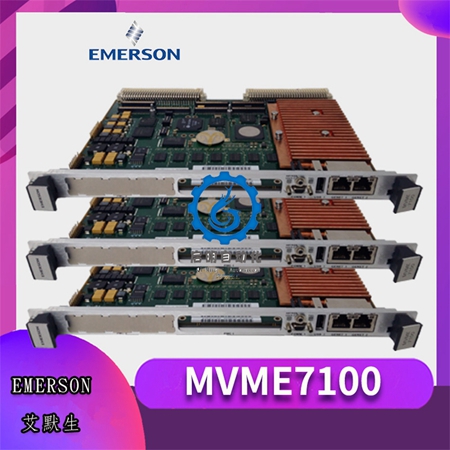

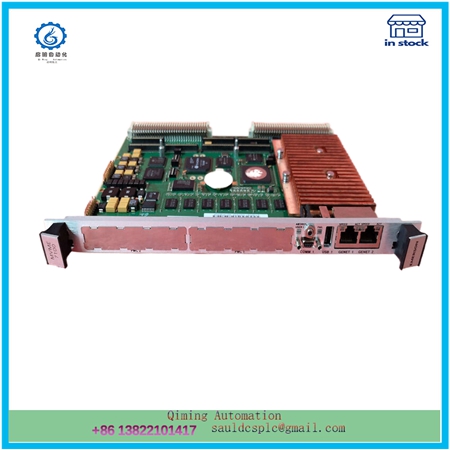

MOTOROLA MVME7100 single board computer

Description

The MOTOROLA MVME7100 module is a high-performance embedded computing module primarily used in industrial automation and real-time control applications. The following is a detailed introduction to this module:

1、 Product Overview
MVME7100 is a single board computer (SBC) based on the VMEbus standard, which integrates advanced processing technology and rich interface functions, aiming to improve system performance and functionality while protecting basic investments in VMEbus and related technologies. This module is widely used in industrial, medical, and defense/aerospace fields.

2、 Main features
Powerful processing power:
The MVME7100 is equipped with an NXP MPC864xD System on Chip (SoC) processor with a main frequency of up to 1.3GHz, featuring dual PowerPC ® E600 processor core.
This processor design is very suitable for I/O and data intensive applications, providing excellent processing performance.
Large capacity memory and storage:
The module supports up to 2GB of DDR2 ECC memory, as well as 128MB NOR flash and 2GB, 4GB, or 8GB NAND flash.
These storage resources ensure fast access to control logic and historical data, as well as the persistence and reliability of operating systems and applications.
Rich communication interfaces:

MVME7100 provides multiple communication interfaces, including four Gigabit Ethernet ports, USB 2.0 controllers, five RS-232 serial connections, and more.
These interfaces enable the module to efficiently transmit and share data with other devices and control systems.
Scalability and compatibility:
The module supports the 2eSST VME bus protocol, with a VME bus transmission rate of 20MB/s (up to 320MB/s).
The dual 33/66/100 MHz PMC-X interface and processor PMC 8x PCI Express expansion connector support expansion through industry standard modules.
This enables MVME7100 to easily integrate into existing VMEbus infrastructure, providing backward compatibility.
Durability and environmental adaptability:
MVME7100 provides a board variant with extended temperatures (-40 ° C to+71 ° C), supporting operation in harsh environments.
The sturdy and durable design ensures the stability and reliability of the module during long-term operation.
3、 Application field
Due to its powerful processing power and multiple communication interfaces, MVME7100 supports a variety of industrial applications, including but not limited to:

Automation control system
Machine control
Motion control
Data collection and monitoring
These application areas have extremely high requirements for the real-time, stability, and reliability of the system, and MVME7100 is designed to meet these requirements.

4、 Summary
The MOTOROLA MVME7100 module is an embedded computing module that combines high performance, large capacity storage, rich interfaces, and durability. It can not only significantly improve the processing power and communication efficiency of the system, but also protect customers’ investments in VMEbus and related technologies. Therefore, this module has broad application prospects in the fields of industrial automation and real-time control.
