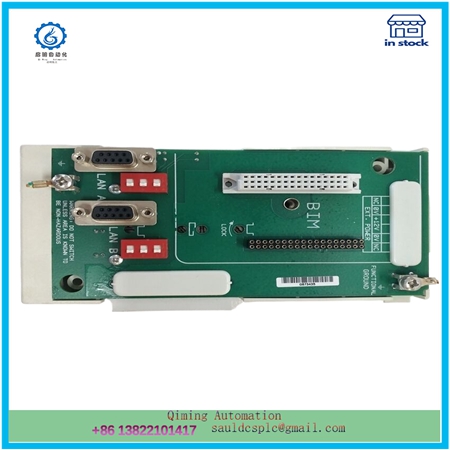

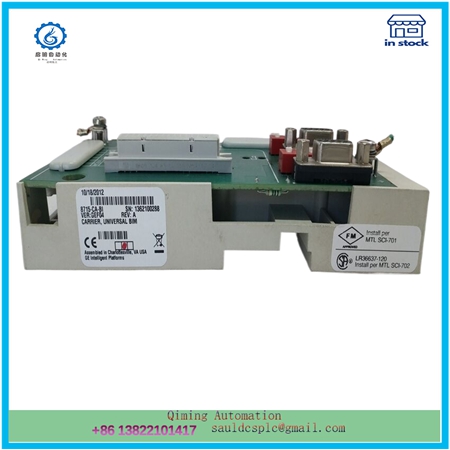

MTL 8715-CA-BI

Description

The MTL 8715-CA-BI module is a powerful industrial automation component suitable for various application scenarios. The following is a detailed introduction about the module:

essential information
Model: MTL 8715-CA-BI
Type: Analog signal isolation barrier, digital control module, logic module
Main application: Industrial automation system
major function
Analog signal isolation and transmission:
The MTL 8715-CA-BI module is capable of isolating and transmitting 4-20mA analog signals, preventing interference between input and output circuits and ensuring the quality of transmitted signals.
The input signal is 4-20mA DC, and the output signal can be 4-20mA DC or 1-5V DC.
Digital quantity control:

Provides 8 digital input ports and 4 digital output ports, which can be used to connect various types of sensors and actuators.
Supports multiple control modes, including switches, buttons, and relays, suitable for complex industrial automation control systems.
Logical input and processing:
As a logical module, MTL 8715-CA-BI has safety related features and meets the requirements of safety standards.
Equipped with 16 safety related digital inputs, capable of detecting high levels on the digital inputs to ensure that voltage and current thresholds exceed safety thresholds.
Control and monitor the security related 1oo2 processor system through I/O modules to ensure that data and status are available for use by the processor module.
technical parameter
Isolation voltage: up to 1500V AC
Frequency response range: DC -10kHz
Linearity error: ± 0.1%
Supply voltage: 18-32V DC
Working temperature range: -20 ° C to+60 ° C or -40 ° C to 85 ° C depending on the source (may vary depending on version or application scenario)
Installation method: Installed on a 35mm DIN rail, with dimensions of 22.5mm x 99mm x 114mm and a weight of approximately 160g
System Integration and Communication
Modular design: MTL 8715-CA-BI is a fully modular I/O solution with an open architecture.
Bus interface: Supports and can interconnect bus interface modules (BIM) or controllers, power supplies, I/O modules, and field wiring terminals.
Communication protocol: Supports Profibus protocol, enabling efficient data transmission and communication. At the same time, it supports up to 24 I/O modules to meet the needs of complex systems.
High speed data transmission: Supports LAN speeds up to 6 Mbaud to ensure efficient data transmission.
Other characteristics
Redundant system bus: Improve the reliability and availability of the system.
Extended diagnosis: It has the function of module and channel status extension diagnosis, which is convenient for troubleshooting and maintenance.
Non volatile memory: used for storing configuration parameters to ensure the persistence of system configurations.
summary
The MTL 8715-CA-BI module is an industrial automation component that integrates analog signal isolation, digital quantity control, and logic processing. Its high performance, high reliability, and flexible configuration options make it an ideal choice in the field of industrial automation. Whether used for isolating and transmitting analog signals, controlling digital input and output, or as a logic processing unit, MTL 8715-CA-BI can provide excellent performance and reliable services.
