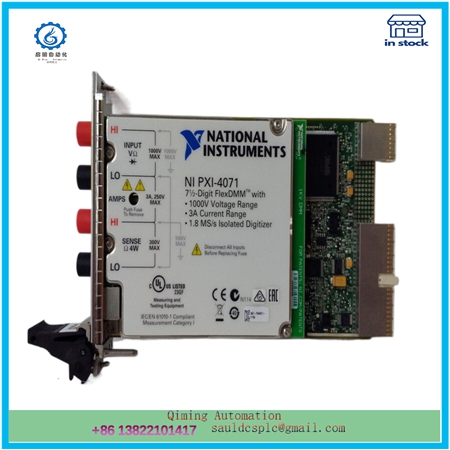

National Instruments NI PXI-4071 digital multimeter

Description

National Instruments NI PXI-4071 digital multimeter

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

PXI-4071 is a high-performance and multifunctional digital multimeter with the following main features and specifications:

1、 Basic information

Type: FlexDMM multifunctional 3U PXI module
Manufacturer: National Instruments (NI)
Part number: 778271-01
2、 Measurement ability

Voltage measurement:
Range: ± 10nV to 1000V (700 VAC)
Accuracy: The most accurate 7-and-a-half-digit multimeter in the industry
Current measurement:
Range: ± 1pA to 3A
DC current range: -3A to 3A
Current sensitivity: up to 1 pA
Resistance measurement:
Range: 10 µ Ω to 5 G Ω
Other measurements:
Frequency/period measurement
Diode measurement
3、 Technical specifications

Waveform acquisition: In the high voltage isolation digitizer mode, it can collect DC waveforms in all voltage and current modes at a collection rate of 1.8 MS/s.
Isolation capability: ± 500 VDC/Vrms common mode isolation, 1000V isolation.
Programming and Interface: Supports NI LabVIEW programming, can import and export triggers, and easily coordinate triggers with any multiplexer/matrix switch module.
