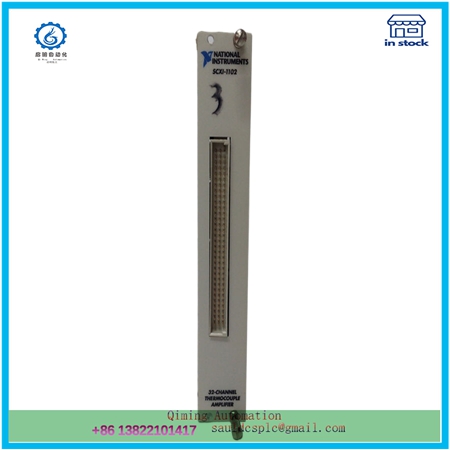

National Instruments NI SCXI-1102 Thermocouple Input Modules

Description

SCXI-1102 is an important equipment produced by National Instruments (NI), and specific information can be summarized as follows:

Type and Function:
SCXI-1102 is a data acquisition card chassis designed to be compatible with the SCXI module series, providing a modular and scalable platform suitable for various measurement and control applications.
It supports multiple types of filters, such as low-pass filters, high pass filters, bandpass filters, and bandstop filters, and can be used to remove noise, interference, or unwanted frequency components from the signal to obtain the desired signal spectrum.
Application scenario:

The SCXI-1102 chassis can be applied to laboratory measurement and testing, including physics, engineering, biology, and other fields.
It can also be used for data collection and monitoring, such as collecting and monitoring data from various sensors, including temperature, pressure, vibration, etc.
In terms of vehicle testing and monitoring, the SCXI-1102 chassis also has its place of use, such as in vehicle testing and monitoring in the automotive, aerospace, or other transportation fields, such as engine performance testing, vibration analysis, etc.
Hardware configuration:
The SCXI-1102 chassis typically consists of 9 slots, of which 5 are primary template slots and the other 4 are I/O interface auxiliary template slots. These slot designs allow users to flexibly configure and expand the system according to their actual needs.
Software support:
SCXI-1102 can be used in conjunction with NI software platforms such as LabVIEW, providing flexible configuration, control, and data analysis capabilities.
Other modules:
NI has also produced other modules compatible with SCXI-1102, such as the NI SCXI-1102B thermocouple amplifier module, which is specifically designed for thermocouple signals and can accurately measure and amplify thermocouple signals, suitable for temperature measurement and control applications.
