NI CFP-AI-100 Compact FieldPoint

Description

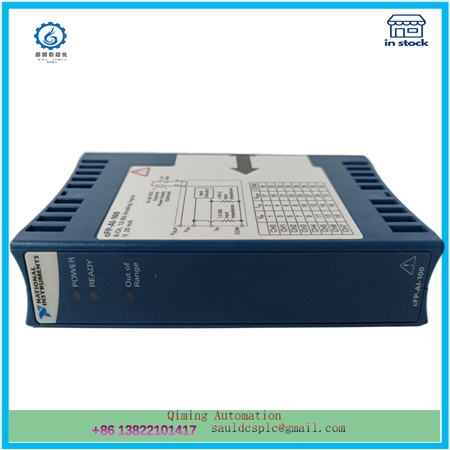

The NI CFP-AI-100 module is an analog input module manufactured by National Instruments (NI), widely used in data acquisition, measurement, and control systems. The following is a detailed introduction to this module:

1、 Basic functions, characteristics, advantages
Basic functions:

Analog signal acquisition: The NI CFP-AI-100 module can convert analog signals (such as voltage, current, temperature, etc.) into digital signals for processing and analysis by computers or control systems.
High precision measurement: This module supports multiple current range measurements, such as 0 to 20mA, 4 to 20mA, and ± 20mA, and provides 12 bit resolution to ensure high accuracy of data acquisition.
characteristic:

Multi channel design: With 8 channels, it supports parallel acquisition of multiple analog signals, improving the efficiency and flexibility of data acquisition.
High performance ADC conversion: Adopting a step-by-step approximation approach for ADC conversion, providing fast and accurate data conversion capabilities.
Onboard diagnosis and suspension function: With onboard diagnosis and suspension function, it is convenient for installation and maintenance, while ensuring the stable operation of the system.
Over range alarm: Equipped with over range alarm function, it can issue an alarm in a timely manner when the signal exceeds the set range, protecting the safety of the system and equipment.
Wide operating temperature range: can operate within a wide temperature range of -40 ° C to 70 ° C and -55 ° C to 85 ° C, adapting to different environmental requirements.
Advantages:

High compatibility: seamlessly integrated with NI’s DAQmx data acquisition software, providing flexible and powerful data acquisition and control solutions.
Real time data processing: Supports real-time data processing and analysis, meeting application scenarios with high requirements for real-time performance.
Easy to expand: It can be used in conjunction with other NI hardware and software products to achieve more complex data acquisition and control systems.
2、 Application scenarios and cases
The NI CFP-AI-100 module has a wide range of applications in multiple fields, including but not limited to:

Scientific experiments: used in scientific experiments and research to collect and analyze simulated data, supporting precise experimental measurements and control.
Engineering measurement: In engineering projects, it is used to monitor and control various physical quantities, such as temperature, pressure, flow rate, etc.
Automation control system: integrated into the automation control system, achieving precise control of equipment and processes, improving production efficiency and product quality.
Data collection system: used to build a data collection system, collect simulated data from laboratories, industrial environments, or other applications, support data analysis and decision support.
3、 Comparison with other similar modules
Compared with other similar modules, the NI CFP-AI-100 module has the following unique features and advantages:

High precision and multi-channel: Provides 12 bit resolution and 8 channel design, ensuring high accuracy in data acquisition and meeting the requirements of parallel acquisition of multiple signals.
Powerful software support: seamlessly integrated with NI’s DAQmx data acquisition software, providing rich measurement and control functions as well as real-time data processing capabilities.
Wide compatibility: It can be used in conjunction with other NI hardware and software products to achieve more complex data acquisition and control systems, improving system flexibility and scalability.
Reliability and Stability: After strict testing and verification, it ensures stable operation in harsh industrial environments with high reliability and stability.
In summary, the NI CFP-AI-100 module plays an important role in data acquisition, measurement, and control systems due to its high precision, multi-channel design, powerful software support, and wide compatibility.
