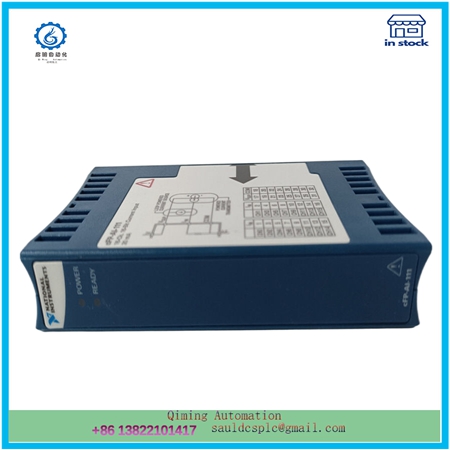

NI CFP-AI-111 Analog Current Input Module

Description

Detailed Introduction of NI CFP-AI-111 Module
1、 Product Overview
NI CFP-AI-111 is a high-performance analog input module produced by National Instruments (NI), designed specifically for precise measurement and data acquisition. This module is widely used in fields such as industrial automation, scientific research, laboratory testing, and control systems, and is favored by users for its high precision, reliability, and ease of integration.

2、 Functional characteristics
High performance analog input:
High resolution: The NI CFP-AI-111 module has a 16 bit resolution and can provide high-precision analog signal measurement.
Multi channel design: equipped with 16 analog input channels to meet the needs of multi-channel data acquisition.
Multiple input ranges: Supports multiple input voltage or current ranges (such as 0 to 20mA, 4 to 20mA, and ± 20mA), suitable for measuring different signal types.
High speed data collection:
Support different sampling rates to meet the signal acquisition needs of different frequencies. The high-speed data collection capability can capture more details and changes, improve measurement accuracy and reliability.
Compact design and easy integration:
The module has a compact size, making it easy to use in environments with limited space.
Standardized interfaces and protocols facilitate connection and communication with other devices. Remote data collection and control can be achieved by connecting to the controller or computer through cables or optical fibers.
Real time monitoring and diagnosis:
The onboard diagnostic function can monitor the status and performance of modules in real time, and promptly detect and handle faults or abnormal situations.
High reliability:
Adopting industrial grade design and manufacturing processes, ensuring stable operation in harsh working environments with high reliability and stability.
Flexible configuration:
Users can configure the number of channels, input range, and other parameters of the module as needed to meet specific application requirements.
3、 Application scenarios and potential in the field of AI
Although the NI CFP-AI-111 module itself does not directly participate in the calculation of AI algorithms, it plays a crucial role in the data collection and preprocessing stages of AI systems. In AI applications, high-precision data collection is the foundation for model training and prediction. The NI CFP-AI-111 module can provide high-quality data sources and support the application of AI systems in the following fields:

Industrial automation: By collecting various analog signals on the production line (such as temperature, pressure, flow rate, etc.), real-time data is provided for AI systems to achieve intelligent monitoring and predictive maintenance.
Scientific research: used in scientific experiments such as physics, chemistry, and biology to collect and analyze simulated data, supporting the application of AI algorithms in data analysis, pattern recognition, and other fields.
Intelligent control system: Combining AI algorithms to achieve intelligent control of complex systems, improving the automation level and operational efficiency of the system.
4、 Technical specifications and interface documents
Resolution: 16 bits
Number of channels: 16 channels
Input range: Supports multiple current and voltage ranges (such as 0 to 20mA, 4 to 20mA, and ± 20mA)
Sampling rate: supports different sampling rates, specific configuration according to application requirements
Update rate: 360Hz (providing fast data updates on all channels)
Working temperature range: -40 ° C to 70 ° C (standard range), -55 ° C to 85 ° C (extended range)
Communication interface: Usually connected to a computer or data acquisition system through various communication interfaces, such as PCI Express, USB, Ethernet, etc. (specific interfaces need to refer to the product manual)
Interface documentation and download link:

5、 Summary
The NI CFP-AI-111 module has broad application prospects in industrial automation, scientific research, laboratory testing, and control systems due to its high performance, reliability, and ease of integration. In AI systems, this module serves as a key component for data collection, providing high-quality data sources for AI algorithms and supporting the in-depth application and development of AI in more fields.
