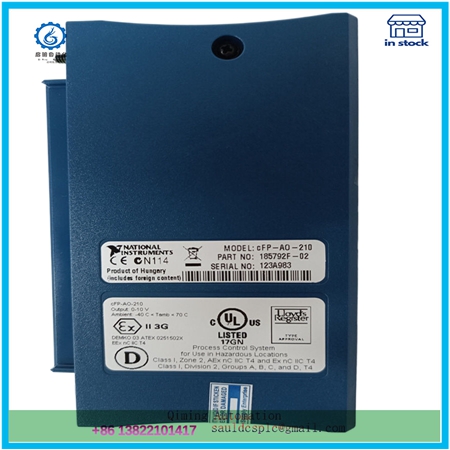

NI CFP-AO-210 Compact FieldPoint

Description

The NI CFP-AO-210 module is a multifunctional analog voltage output module suitable for Compact FieldPoint systems. The following is a detailed introduction to this module:

1、 Function
The NI CFP-AO-210 module is mainly used to generate analog voltage signals for controlling valves, instruments, and other industrial actuators. Through this module, users can directly connect to the tested industrial actuator or unit to achieve high-precision control.

2、 Characteristics
Multi channel output: This module provides 8 voltage output channels, each of which can be independently controlled to meet various control requirements.
High resolution: Using a 12 bit resolution DAC (Digital to Analog Converter), it can generate high-precision analog voltage signals.
High update rate: The update rate can reach up to 200 Hz, ensuring fast response to changes in control signals.
Common terminal design: includes 16 common terminals for easy wiring and maintenance.
Over range and onboard diagnostic functions: All modules have these functions to ensure fault free installation and maintenance, improving system reliability and stability.
NIST Traceable Calibration Certificate: Attached is this certificate to ensure accurate and reliable simulation control.
Software integration friendly: supports direct writing of engineering values into I/O modules through software applications, eliminating the complex steps of converting voltage or current to binary values and simplifying control processes.
3、 Application scenarios
The NI CFP-AO-210 module is widely used in the field of industrial automation, especially in scenarios that require precise control of valves, instruments, and other industrial actuators. For example, in process control systems in industries such as chemical, petroleum, natural gas, and water treatment, this module can be used to adjust key parameters such as flow rate, pressure, and temperature to ensure the stability and safety of the production process.

4、 Advantages
High precision control: Through a 12 bit resolution DAC and high update rate, high-precision analog voltage output is achieved, meeting the application scenarios that require high control accuracy.
Easy to install and maintain: The over range and onboard diagnostic functions simplify the installation process and reduce maintenance costs.
High flexibility: The multi-channel output and common terminal design provide greater flexibility, suitable for various control needs.
High reliability: NIST traceable calibration certificates and high-quality manufacturing processes ensure the long-term stability and reliability of the modules.
In summary, the NI CFP-AO-210 module is a powerful, distinctive, widely applicable, and advantageous analog voltage output module, which is an indispensable and important component of industrial automation control systems.
