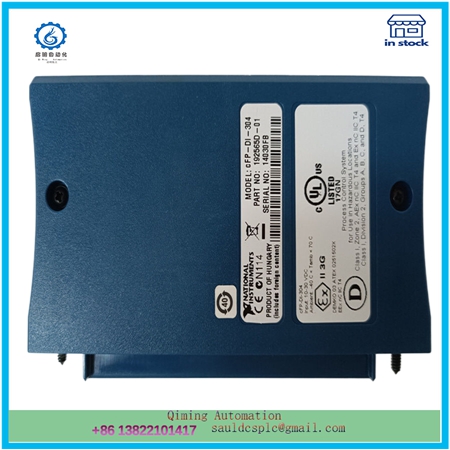

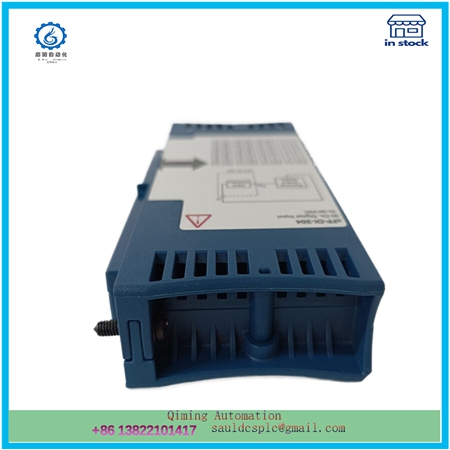

NI CFP-DI-304 Digital Input Module

Description

Detailed introduction of NI CFP-DI-304 module

1、 Module function
The NI CFP-DI-304 is a leaky digital input module for Compact FieldPoint systems, with 32 digital input channels. This module is mainly used to monitor the voltage level of signals, especially in industrial automation systems to monitor the status of limit switches, power circuits, and relay closures. It supports compatibility between cFP devices and TTL devices, providing engineers with flexible data collection solutions.

2、 Characteristics
Modular structural design: CFP-DI-304 adopts a modular design, which is easy to install and integrate into the Compact FieldPoint system.
Built in isolation protection: The module has a module to module isolation function, which can protect the Compact FieldPoint system, controller, or communication interface from high voltage levels and provide continuous isolation RMS up to 250V.
Plug and play operation: supports HotPnP (plug and play) operation, simplifies installation and setup process, automatically detects and recognizes configuration software, and improves engineering efficiency.

Wide working temperature range: Supports working in ambient temperatures ranging from -40 ° C to 85 ° C, adapting to various industrial environment requirements.
High reliability and precision: Developed by National Instruments (NI) in the United States, it has high quality and reliability, ensuring the accuracy and stability of data collection.
3、 Application scenarios
The NI CFP-DI-304 module is widely used in industrial automation, machine monitoring, process control and other fields. It is particularly suitable for situations that require high-precision and high reliability digital input signals, such as limit detection on production lines, safety door monitoring, relay status feedback, etc.

4、 Advantages
High performance: Provides 32 digital input channels to meet large-scale data collection needs.
High reliability: Built in isolation protection to prevent high voltage damage and improve system stability.
Usability: Plug and play operation and automatic detection function, simplifying installation and configuration processes.
Wide compatibility: Compatible with cFP and TTL devices, facilitating system integration.
5、 Limitations
Although the NI CFP-DI-304 module has significant advantages in the field of industrial automation, its limitations are mainly reflected in the following aspects:

Customizability limitation: This module is a finished product and does not support processing customization, which may not meet the personalized needs of certain special application scenarios.
Cost considerations: As a high-performance industrial grade module, its price is relatively high and may not be suitable for projects with limited budgets.
In summary, the NI CFP-DI-304 module has broad application prospects in the field of industrial automation due to its high performance, high reliability, and ease of use. However, when choosing to use it, it is also necessary to consider the specific needs and budget situation of the project comprehensively.
