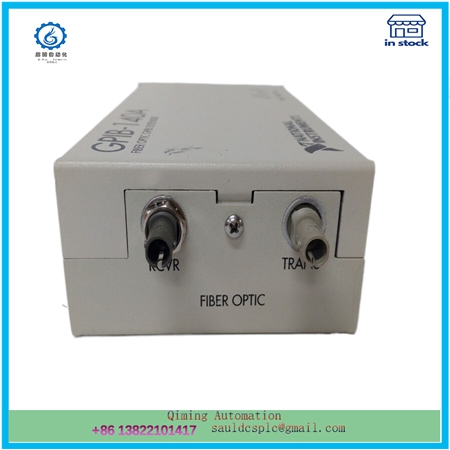

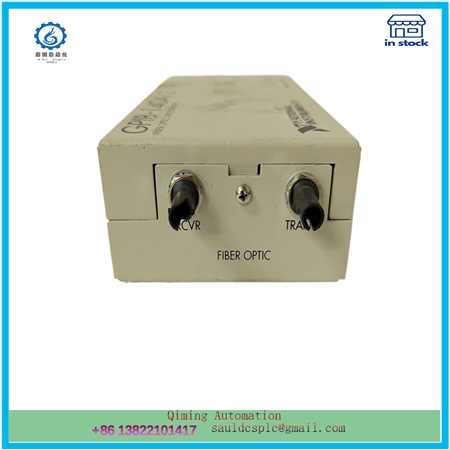

NI GPIB-140A Bus extender

Description

The NI GPIB-140A module is a high-performance and multifunctional GPIB interface control module produced by National Instruments (NI), widely used in laboratory measurement, testing, and control systems, as well as industrial automation applications. The following is a detailed introduction to this module:

1、 Basic characteristics
Interface standards:
Adopting GPIB (General Purpose Interface Bus) standard interface, also known as IEEE 488 interface. This interface standard is widely used in the fields of measurement and automation, for connecting instruments, equipment, and computers to achieve data communication and control functions.
Supports high-speed data transmission with speeds up to 1.1 Mb/s (IEEE 488.1) or 2.8 Mb/s (HS488), suitable for applications that require real-time data collection and control.
Pulse control function:
Specially designed for pulse control applications, it can generate and control pulse signals, including parameters such as frequency, amplitude, width, and phase of pulses.
High precision and stability, able to provide accurate and reliable pulse signals, using precise clock and timing circuits to ensure the accuracy and consistency of the output signal.
Multi device connection:
Allow simultaneous connection of multiple instruments or devices to a computer, enabling multi-channel data acquisition and control.
Supporting synchronous operation of multiple channels, capable of generating multiple pulse signals simultaneously, meeting complex testing requirements.
Programming and control:
Support various programming interfaces and control software, including LabVIEW, Python, C++, etc. Users can write custom programs according to their own needs for flexible control and configuration.

National Instruments provides software drivers and development tools for this module, making it convenient for users to program and customize applications.
Scalability:
It has good scalability and can be combined with other NI modules and devices to build complex testing and measurement systems.
System compatibility:
Usually supports multiple operating systems, including Windows and Linux, to meet the needs of different users.
2、 Application field
Laboratory measurement and testing:
Used for measurement and testing tasks in various laboratories, such as data collection, instrument control, etc.
Industrial automation:
In the field of industrial automation, it is used to control and monitor various equipment and instruments on production lines.
Education and research:
Widely used in education and research fields, such as teaching students to understand the principles of pulse signal generation and control, as well as supporting various scientific research and experiments.
Communication system testing:
Used to test communication equipment and systems to verify their performance and reliability.
RF applications:
In radio frequency (RF) applications, it is used to generate RF signals and test RF equipment.
3、 Summary
The NI GPIB-140A module plays an important role in laboratory measurement, testing, and control systems as well as industrial automation applications due to its high performance, versatility, and ease of use. Both researchers, engineers, and students can achieve precise and reliable data collection and control tasks through this module.
