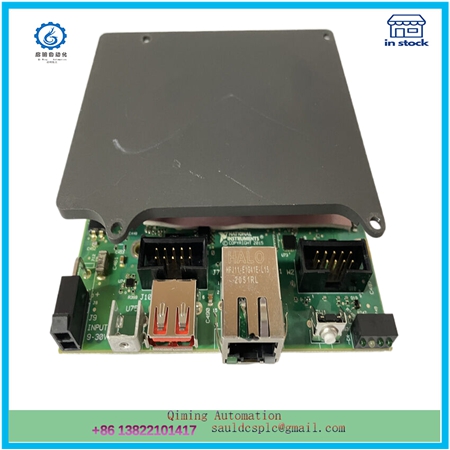

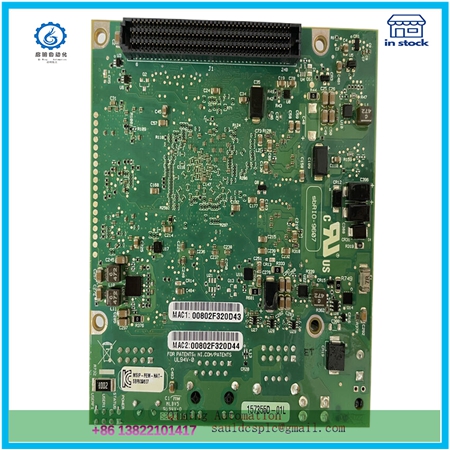

NI SBRIO-9607 embedded controller

Description

The NI SBRIO-9607 module is an embedded system control motherboard module launched by National Instruments (NI), belonging to the CompactRIO series of products. This module plays an important role in data acquisition, signal processing, and embedded control applications due to its powerful data processing capabilities, rich interface options, and high programmability. The following is a detailed analysis of the NI SBRIO-9607 module:

1、 Basic Overview
Product series: CompactRIO series
Main functions: data acquisition, signal processing, and embedded control
Application scenarios: Industrial automation, scientific research experiments, intelligent control, and other fields

2、 Hardware features
Processor:
Made with a reconfigurable FPGA from Serenius Zynq-9607, it features a dual core processor, ensuring high-performance processing capabilities.
The processor has a speed of up to 667 MHz, providing fast and efficient computing power.
Memory:
Equipped with 512 MB of non-volatile memory and volatile memory (DRAM), providing ample storage space for various applications.
Interface options:
Digital/Analog Input/Output: Provides digital and analog input/output interfaces (DIO, AI/AO), as well as counters/timers, for easy connection of sensors, actuators, and other external devices.
RMC connector: It has an RIO Mezzanine Card (RMC) connector with 96 single ended digital input/output lines, directly connected to the FPGA, allowing users to add up to two additional peripherals and C-series devices, thereby expanding the functionality and application range of the device.
Communication Interface: Supports multiple communication protocols and interfaces, such as Ethernet, CAN bus, UART, etc., facilitating data exchange and communication with other devices, sensors, actuators, and upper computers.
3、 Software and Programming
Operating system:
Usually running real-time operating systems, such as NI LabVIEW Real Time, to ensure reliable real-time response to control and data collection tasks.
Programmability:

Support programmable functionality, allowing users to customize control logic and signal processing algorithms through advanced programming languages such as LabVIEW, C/C++, or FPGA programming languages.
For modules with FPGA, users can perform FPGA programming to achieve hardware acceleration and high-speed data processing, and design custom FPGA logic to meet specific application requirements.
4、 Application advantages
Highly integrated: Integrating high-performance processors, FPGAs, and rich interfaces into a compact module reduces system complexity and cost.
Real time performance: The support of real-time operating systems ensures real-time data collection and control, suitable for time sensitive application scenarios.
Flexibility: Programmability and rich interface options enable this module to flexibly adapt to various application requirements.
5、 Summary
The NI SBRIO-9607 module, as a fully functional and high-performance embedded system control motherboard module, has broad application prospects in industrial automation, scientific research experiments, and intelligent control fields. Its powerful data processing capabilities, rich interface options, and high programmability make it an ideal choice for achieving efficient data acquisition, signal processing, and embedded control.
