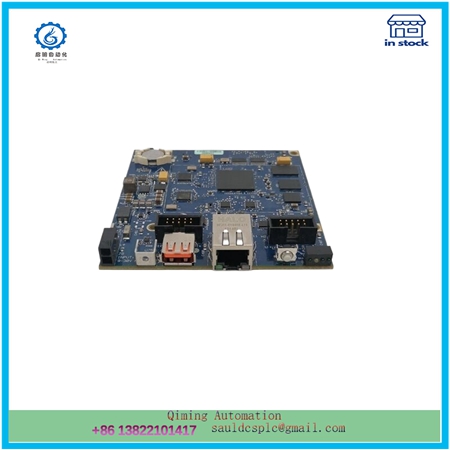

NI SBRIO-9607 motherboard module

Description

NI SBRIO-9607 is an embedded system control motherboard module launched by National Instruments (NI), belonging to the CompactRIO series of products. The following is a detailed introduction to the module:

1、 Main features
High performance processor: SBRIO-9607 is equipped with high-performance embedded processors such as FPGA (Programmable Gate Array) and multi-core processors. Among them, the FPGA part adopts the Xilinx Zynq-9607 reconfigurable chip, which has a dual core processor to ensure high-performance processing capability. In addition, the module also has 512MB of non-volatile memory and volatile memory (DRAM), as well as a processor speed of up to 667MHz, providing ample storage space and fast and efficient computing power.
Rich I/O interfaces: The module provides a variety of digital and analog input/output interfaces, such as digital input/output (DIO), analog input/output (AI/AO), counters/timers, etc., as well as integrated Gigabit Ethernet, CAN, serial, and USB ports. In addition, there is an RMC (RIO Mezzanine Card) connector with 96 single ended digital input/output lines that directly connect to the FPGA, allowing for the addition of up to two additional peripherals and C-series devices, thereby expanding the device’s functionality and application range.
Real time operating system: SBRIO-9607 typically runs real-time operating systems such as NI LabVIEW Real Time or NI Linux Real Time to ensure reliable real-time response to control and data acquisition tasks.
Programmable: The module supports programmable functionality, allowing users to customize control logic and signal processing algorithms using advanced programming languages such as LabVIEW, C/C++, or FPGA programming languages. This provides users with great flexibility to customize development according to specific application needs.
Data collection and processing: SBRIO-9607 has data collection and processing functions, which can collect sensor data, perform real-time signal processing, and generate control commands. This makes the module have broad application prospects in the fields of industrial automation and intelligent control.
2、 Application scenarios
Due to its high-performance processing capabilities, rich I/O interfaces, real-time operating system support, and programmability, SBRIO-9607 is suitable for various application scenarios that require high-performance data acquisition, signal processing, and embedded control. For example, control systems and data acquisition systems in industrial automation, robot control, machine vision, aerospace, and other fields can all use SBRIO-9607 as the core component.

3、 Technical advantages
Highly integrated: SBRIO-9607 integrates high-performance processors, FPGAs, and rich I/O interfaces on a single printed circuit board (PCB), achieving a highly integrated and compact design.
Flexible configuration: Through the programmability of FPGA, users can flexibly configure SBRIO-9607 to adapt to different real-time control tasks and data processing requirements.
Reliable and stable: SBRIO-9607 adopts industrial grade design, suitable for harsh industrial environments and long-term stable operation applications.
In summary, NI SBRIO-9607 is a comprehensive and high-performance embedded system control motherboard module, suitable for various application scenarios that require high-performance data acquisition, signal processing, and embedded control.
