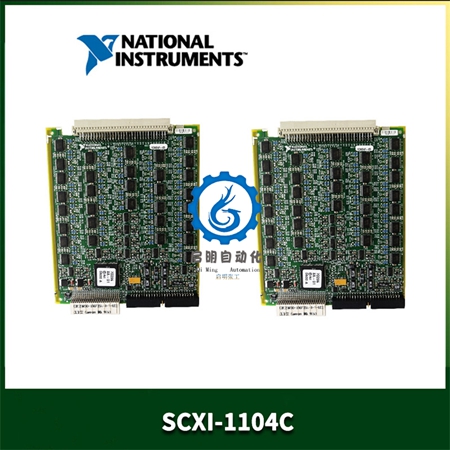

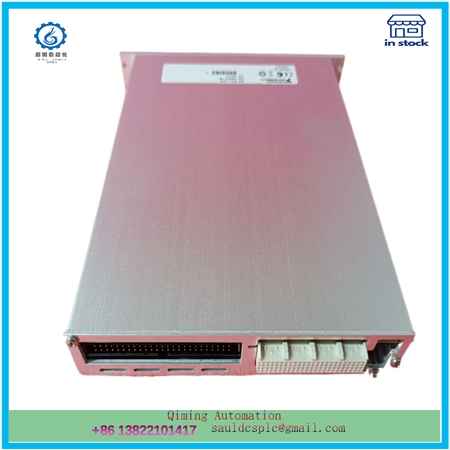

NI SCXI-1104C Data Acquisition Module

Description

Detailed Introduction to NI SCXI-1104C Module
1、 Basic information
Product Name: NI SCXI-1104C Data Acquisition Module
Model: SCXI-1104C
Manufacturer: National Instruments (NI)
Function: This module is a high-performance, multi-channel data acquisition module designed specifically for applications that require high-precision data acquisition. It can collect, monitor, and analyze analog signals in real time.

2、 Technical characteristics and advantages
High performance:
Adopting high-performance ADC (analog-to-digital converter), providing high-resolution (24 bit) and high-precision data acquisition.
The maximum sampling rate can reach 100 kS/s, and the specific rate can be adjusted according to application requirements.
Multi channel:
Supports simultaneous acquisition of multiple channels, typically 32 single ended or 16 differential input channels, capable of connecting multiple sensors or signal sources.
Flexibility:

It has programmability and can be configured and controlled through programming languages such as LabVIEW to meet specific application requirements.
Supports multiple acquisition modes such as single point, multi-point, scanning, as well as various signal types such as voltage, current, resistance, etc.
compatibility:
Compatible with other hardware and software products of NI company, such as DAQmx data acquisition software, for easy system integration and expansion.
Supports multiple interface options such as USB, PCI, PXI, and Ethernet, making it easy to connect to computers or control systems.
High precision and stability:
Provide high-precision data collection, with an input voltage range of up to ± 10 V, suitable for various common signal types and voltage standards.
High input impedance (1 M Ω | | 5 pF) ensures stable signal transmission.
Easy to calibrate and maintain:
Easy to calibrate, users can follow the calibration guidelines to ensure measurement accuracy.
Low maintenance cost, suitable for use in various environments.
3、 Applicable fields and limitations
Applicable fields:

Widely used in testing and measurement, automation control, scientific research and other fields.
Especially suitable for real-time acquisition, monitoring, and analysis of analog signals, such as measurement of physical quantities such as temperature, pressure, flow rate, vibration, etc.
Scenarios such as laboratory measurements, industrial automation systems, education and research experiments.
Limitations:

Suitable sampling rates and channel configurations need to be selected based on specific application requirements.
When used under extreme environmental conditions, additional protective measures may be required.
4、 Price and after-sales service
Price: The price of the NI SCXI-1104C module may vary due to market supply and promotional activities, but usually starts at around ¥ 1629.00. The specific price needs to be negotiated and determined with the merchant.

after-sale service:

NI Company provides comprehensive after-sales service and technical support to ensure that users receive timely assistance and support during use.
The product enjoys at least one year of warranty service. Please refer to the official information of NI company for specific warranty policies.
5、 Importance and value
The NI SCXI-1104C data acquisition module plays an important role in the field of data acquisition due to its high performance, multi-channel, high precision, and flexibility. It not only improves the efficiency and accuracy of data collection, but also provides great convenience to users through programmability and compatibility. For scientific research, industry, and automation control fields that require high-precision data collection, the NI SCXI-1104C module is undoubtedly an indispensable and important tool. Its wide range of application scenarios and reliable after-sales service make it an ideal choice for potential customers.
