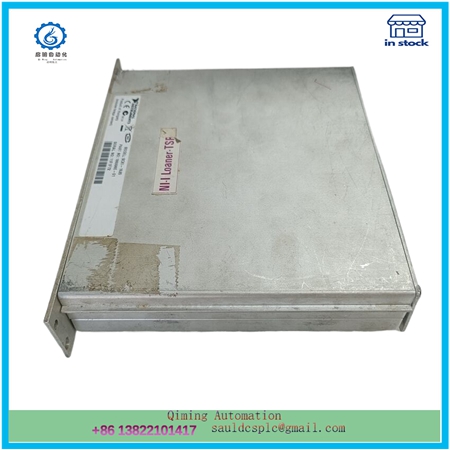

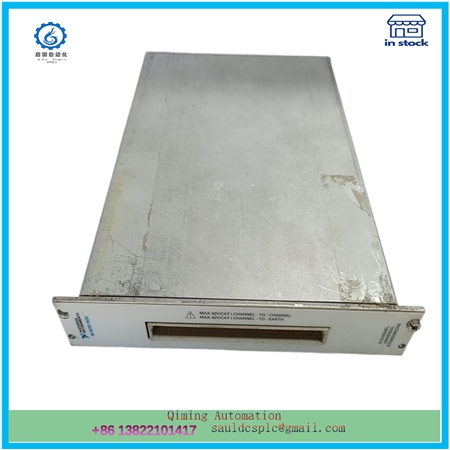

NI SCXI-1520 module

Description

The NI SCXI-1520 module is a high-performance control motherboard module produced by National Instruments (NI), commonly used in NI’s SCXI (Signal Conditioning eXtensions for Instrumentation) modular measurement and control system to achieve signal conditioning, data acquisition, and control. The following is a detailed introduction to the NI SCXI-1520 module:

1、 Product Overview
Manufacturer: National Instruments (NI)
Type: Control motherboard module
Purpose: Used in SCXI modular measurement and control systems to achieve signal conditioning, data acquisition, and control
2、 Main functions and features
Module control:
The SCXI-1520 module is typically used as the motherboard for SCXI systems, responsible for managing and controlling signal conditioning and data acquisition connected to external modules of SCXI.
Signal conditioning:
This module has high-performance signal conditioning function, which can make necessary adjustments and processing of input signals to adapt to subsequent data acquisition and processing needs.
Data collection:
Support high-speed data acquisition, capable of real-time acquisition and recording of measurement signal data, and conducting necessary analysis and processing.
Control function:

Various control functions can be implemented through programming, such as analog output signal control, digital signal output, etc., to meet the needs of automation control.
Communication interface:
Equipped with communication interfaces, it can communicate with computers or controllers to achieve remote monitoring and control. Supports multiple communication protocols and interface standards, facilitating integration and data exchange with other industrial automation equipment.
Module extension:
Provide multiple slots for inserting other SCXI modules, such as analog input modules, digital input/output modules, relay modules, etc., allowing users to expand and customize modules according to application needs.
Real time monitoring:
Capable of real-time monitoring of the status of connected modules and sensors, and detecting any abnormal situations in a timely manner.
Easy to use and maintain:
Provide a simple and easy-to-use operating interface and user-friendly maintenance functions, making it convenient for users to set up, monitor, and control.
3、 Application Fields
The NI SCXI-1520 module is widely used in various measurement and control applications, such as laboratory research, testing and measurement, automation control, data acquisition, etc. Especially in industrial automation application scenarios that require efficient, stable, and precise control, this module performs excellently.

4、 Technical specifications (taking high-density matrix switch module as an example)
Dimensions: 22.9 mm x 216.0 mm x 290.0 mm
Weight: 0.91 kg
Number of channels: 64×4 (256)
Channel type: Single Pole Double Throw (SPDT)
Maximum voltage/current: 250 Vrms/2 A
Maximum power: 60 W
Switch lifespan: 5×10 ^ 7 times
Response time: 10 ms
Switch impedance: 50 Ω
Please note that the above technical specifications may vary depending on the product model and configuration. Please refer to the product manual or contact NI official for accurate information.

In summary, the NI SCXI-1520 module is a powerful, easy-to-use, and maintainable control motherboard module suitable for various industrial automation application scenarios that require efficient, stable, and precise control.
