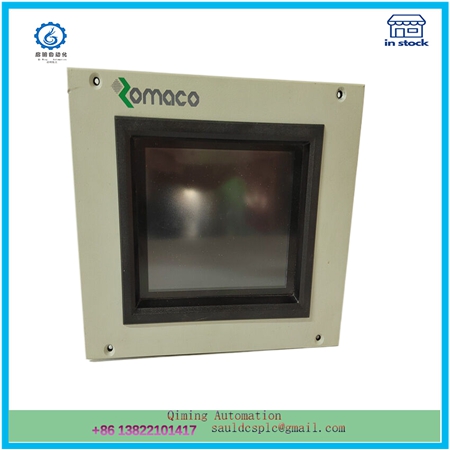

OMACO GF0-57CQD-002 touch screen

Description

OMACO GF0-57CQD-002 touch screen is a device designed specifically for industrial control, monitoring, and configuration of various devices, systems, or automation processes. The following is a detailed introduction to the touch screen:

1、 Product Overview
The OMACO GF0-57CQD-002 touch screen is a miniature panel typically manufactured by OMACO (Omeco). It has been widely used in industrial and manufacturing fields due to its user-friendly interface, high response speed, and easy operation.

2、 Main features
User friendly interface:
This touch screen is typically equipped with an LCD display screen, buttons, touch screen, or knob to provide an intuitive and user-friendly operating interface.
Users can input commands, view data, and configure by touching the graphical buttons on the screen or using other input devices.
High precision touch technology:
A touch screen is composed of two highly transparent conductive layers, with a distance of only 2.5 micrometers between the two layers.
When lightly touching the surface, the current passes through the surface and contacts the bottom layer. The controller simultaneously reads the proportional current from the four corners and calculates the distance between finger positions, thereby achieving high-precision touch control.
Fast response speed:
The touch screen has a fast response speed, allowing users to quickly operate and respond.
Data monitoring and configuration:
Touch screens typically display real-time data such as temperature, pressure, flow rate, speed, etc., in order for operators to monitor equipment status.
Allow users to configure device parameters, adjust control logic, and perform other settings to meet specific application requirements.
Tactile feedback system:

When touching graphic buttons on the screen, the tactile feedback system on the screen can drive various connecting devices based on pre programmed programs and can be used to replace mechanical button panels.
Environmental adaptability:
It can operate in ambient temperatures up to 50 ° C, but appropriate air circulation must be maintained to avoid exposing flat screens to direct sunlight.
The installation method is flexible and can meet the needs of different application scenarios.
3、 Application field
OMACO GF0-57CQD-002 touch screen is widely used in the field of industrial automation, including automated production lines, mechanical control, process control, etc. It can be used to control various devices such as motors, valves, sensors, etc., and can be used to monitor device operation and generate alarms or alerts when abnormal situations are detected.

4、 Technical specifications
Size: 5.7 inches
Resolution: 320×240
Display color: STN color display technology
Input voltage: 24VDC
Weight: 2.65 kilograms

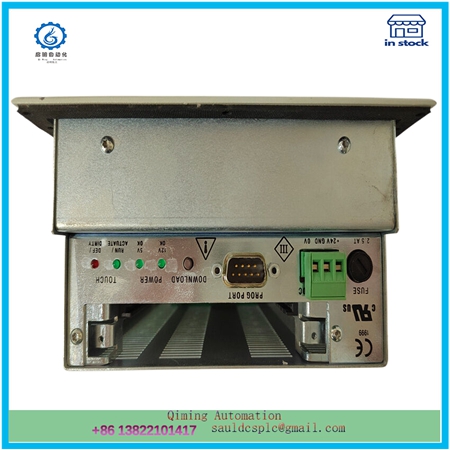

Other: equipped with storage card slots (2), alarm function, etc
5、 Summary
OMACO GF0-57CQD-002 touch screen has become one of the important equipment in the field of industrial automation due to its excellent performance and wide range of applications. Its high-precision touch technology, fast response speed, and user-friendly interface make operations simpler and more intuitive. Meanwhile, its powerful data monitoring and configuration functions also meet various complex application requirements.
