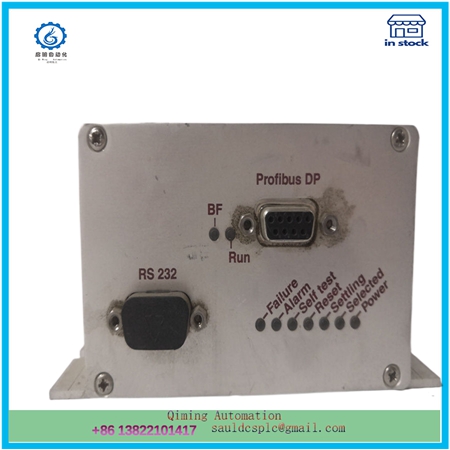

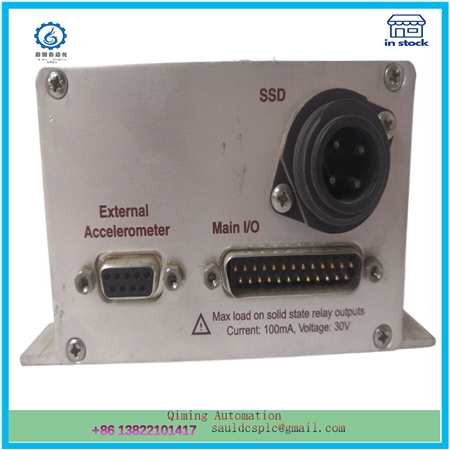

PCH1026 vibration monitoring instrument module

Description

PCH1026 module detailed introduction
1. Basic functions, characteristics, and application scenarios of PCH1026 module
Basic functions:
PCH1026 is a vibration monitoring instrument designed specifically for low-frequency structural vibration monitoring applications. It has a built-in accelerometer that can monitor the vibration signal of the device in real time, and detect abnormal vibration modes and faults by analyzing the vibration spectrum and characteristics. In addition, PCH1026 also supports fieldbus communication protocols, facilitating data transmission and integration with other systems.

characteristic:

Low frequency monitoring capability: capable of monitoring low-frequency vibrations as low as 0.05Hz.
Multi channel input: Provides 4 input channels (internal/external), supports up to 3 internal accelerometers, with optional directions of A, B, and/or C.
Real time FFT analysis: supports tower frequency detection and achieves real-time spectrum analysis of vibration signals.
Powerful self check and diagnostic functions: Built in self check and diagnostic functions (PL-d, SIL 2) ensure the stability and reliability of equipment operation.
Wide range of customization options: Designed based on digital platforms, allowing for multiple customer solutions, and easily and quickly changing configurations and settings through PC software.
Application scenario:
PCH1026 is widely used in industrial automation, environmental protection, energy and other fields, especially in equipment maintenance, process control, and fault detection, playing an important role. It can help users promptly identify potential equipment issues, optimize maintenance plans, and improve production efficiency and safety.

2. Main performance parameters, specifications, and compatibility of PCH1026 module
Main performance parameters:

Dynamic range: ± 6g (peak), all accelerometers are equipped with internal actuators for self checking function.
Power requirements: DC power supply, voltage range 20-30V, maximum power consumption 7W.
Specifications:

Dimensions: 254mm in length x 130mm in width x 66mm in height.
Weight: Approximately 2 kilograms.
Installation groove: 5 x 6.5mm.
compatibility:
PCH1026 supports multiple fieldbus communication protocols, including Modbus, CAN, Ethernet, etc., and can be easily integrated into various industrial control systems. Meanwhile, its extensive customization options enable it to meet the specific needs of different customers.

3. Usage, operation process, and precautions of PCH1026 module
usage method:

Connect power: Ensure that the PCH1026 module is connected to a DC power supply with a voltage between 20-30V.
Configure input channels: Select internal or external accelerometers as needed, and configure input channels and parameters through PC software.
Start monitoring: Start the PCH1026 module to start real-time monitoring of the equipment’s vibration signals.
Data analysis: Analyze vibration data through PC software to detect abnormal vibration patterns and faults.
Operation process:

Read the user manual in detail to understand the functions and operation guidelines of the module.
Connect the power supply and sensor correctly according to the steps.
Use PC software for configuration and parameter settings.
Start the module to monitor and analyze data.
matters needing attention:

Ensure that the power supply voltage is within the allowable range and avoid overvoltage or undervoltage.
Pay attention to anti-static measures during operation to avoid damaging the internal circuits of the module.
Regularly check the connection status of modules and sensors to ensure the stability of data transmission.
4. After sales service, support, repair and other related information of PCH1026 module
after-sale service:
Suppliers usually provide a one-year warranty period to ensure the reliability and stability of modules under normal use. During the warranty period, if you encounter any non-human damage problems, you can enjoy free repair or replacement services.

technical support:
Suppliers provide a professional technical support team that can answer any questions users may encounter during use through phone, email, or online chat. At the same time, detailed user manuals and operation guides are provided to help users better understand and use the module.

Repair services:
For modules that have exceeded their warranty period or require repair, the supplier provides paid repair services. Users can send the module back to the designated repair point for repair or replacement of damaged components. After the repair is completed, the supplier will send the module back to the user and provide a repair report.

Summary:
The PCH1026 module, as a vibration monitoring instrument designed specifically for low-frequency structural vibration monitoring, has powerful monitoring functions and a wide range of application scenarios. Its high precision, multi-channel input, real-time FFT analysis, and wide range of customization options make it stand out in many industrial fields. At the same time, the comprehensive after-sales service and technical support provided by the supplier also provide strong guarantees for the use of users.
