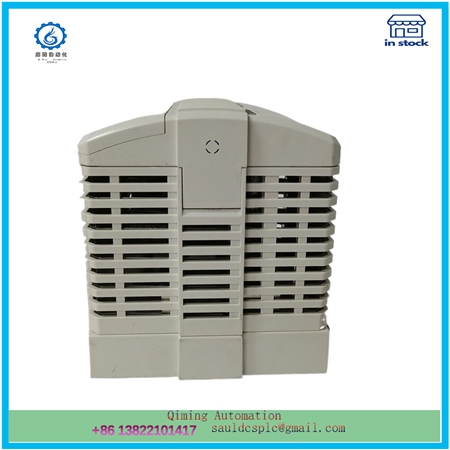

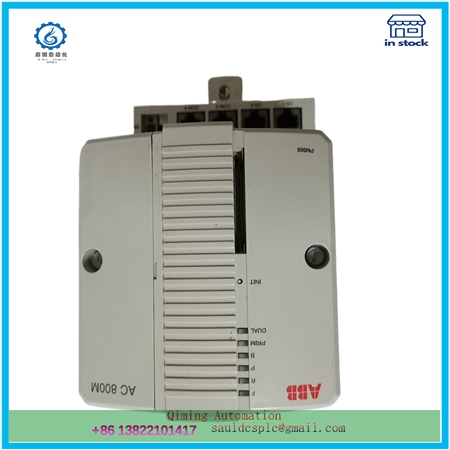

PM866K01 3BSE050198R1 | ABB | Processor Unit Kit

Description

The ABB PM866K01 3BSE050198R1 processor is an industrial automation control module produced by ABB, commonly used in the AC800M series (Compact Products 800) as a CPU controller component. The following is a detailed analysis of the processor:

1、 Product Overview
Model: ABB PM866K01 3BSE050198R1
Series: AC800M series
Type: Processor Unit
Function: Data collection, computational processing, real-time monitoring, control and adjustment, etc
2、 Product Features
High reliability:
Adopting high-quality electronic components and advanced circuit design to ensure continuous and reliable industrial automation control.
Designed to be stable and reliable, suitable for long-term stable operation in industrial environments.
Efficient data processing:
Equipped with high-speed processors and advanced algorithms, it can quickly process various data and control instructions, improving the system’s response speed and stability.
Multi functional integration:

It integrates multiple functions such as logic control, data processing, and communication to meet various industrial automation control needs.
High precision measurement and control capability:
Having high-precision measurement and control capabilities, it can adapt to different material types and process requirements.
Real time monitoring function:
Provide real-time data monitoring and alarm functions, so that operators can understand the system status at any time and take necessary measures.
Programmable and configurable:
Users can configure control logic, data processing, and communication protocols through programming to meet the needs of different application scenarios.
Communication function:
Supports multiple communication protocols (such as Ethernet/IP, Modbus TCP/IP, Profinet, etc.) to facilitate data exchange and communication with other devices or systems.
Flexible configuration:
Support parameter configuration and flexible design to meet the needs of different application scenarios.
Scalability:
Modules may support modular design, allowing users to expand input/output channels or other functional modules as needed.
3、 Application Fields
The ABB PM866K01 3BSE050198R1 processor is widely used in various industrial automation control systems, including but not limited to:

Production line control
machining
Logistics control
sewage disposal
Urban water distribution
Water treatment and seawater desalination
Power automation (such as controlling electrical equipment such as switchgear, circuit breakers, contactors, etc.)
Traffic control (such as controlling traffic signals, electronic police, speed sensors, etc.)
Smart home (such as controlling household appliances such as lighting, air conditioning, curtains, etc.)
4、 Product specifications (partial)
Net depth/length: 135 millimeters
Net height: 186 millimeters
Net width: 119 millimeters
Installation method: Direct installation on the machine (rail installation)
The CPU board includes: microprocessor, RAM memory, real-time clock, LED indicator lights, Initiat button, and CompactFlash interface
Base interface: Two RJ45 Ethernet ports (CN1, CN2) for connecting control networks and two RJ45 serial ports (COM3, COM4)
5、 Summary
The ABB PM866K01 3BSE050198R1 processor is a powerful, reliable, and stable industrial automation control module. Its high reliability, efficient data processing capabilities, multifunctional integration, and flexible configuration and scalability make it widely applicable in various industrial application fields.
