PROSOFT PTQ-PDPS PROFIBUS DP Slave Module

Description

Detailed introduction of the PROSOFT PTQ-PDPS module
Basic functions and characteristics

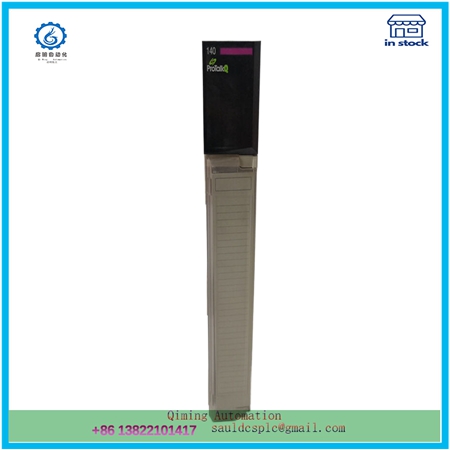

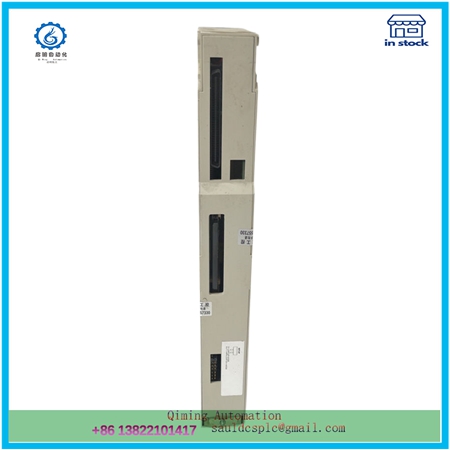

The PROSOFT PTQ-PDPS module is a PROFIBUS DP slave network interface module designed specifically for Quantum processors. The main function of this module is to allow Quantum processors to easily connect and communicate with PROFIBUS DP master station devices. The PTQ-PDPS module supports the PROFIBUS V0 slave protocol and provides powerful data transmission capabilities, making data transmission between the module and processor efficient and reliable.

Its main characteristics include:

PROFIBUS DP slave protocol support: The PTQ-PDPS module supports the PROFIBUS DP-V0 slave protocol, allowing users to easily integrate Quantum processors into the PROFIBUS network.
Flexible data mapping and DP port operation: User configurable data mapping and DP port operation functions make this interface an easy-to-use and powerful data transmission tool. Users can map input and output data blocks to the module’s data storage for maximum flexibility and support data transfer with other protocols.
Convenient configuration and debugging: The PTQ module is equipped with a configuration/debugging serial port, and users can connect to the module through a PC for configuration, status monitoring, troubleshooting, and other operations. The serial cable is shipped with the product, and the configuration file is edited on the PC, downloaded, and stored on the PTQ module.
High speed data transmission: Implement high-speed data transmission between modules and processors, providing fast data update time and ensuring efficient system operation.
Wide compatibility: The PTQ-PDPS module is compatible with all common Quantum programming software packages, such as Concept, Unity Pro, ProWORX, and ModSoft, allowing users to easily integrate into existing control systems.
Application scenarios

The PROSOFT PTQ-PDPS module is widely used in the field of industrial automation, especially in scenarios that require high reliability and real-time data transmission. Its main application areas include power and distribution, petrochemicals, water and natural gas treatment, SCADA (monitoring and data acquisition), and DCS (distributed control system). In these applications, the PTQ-PDPS module serves as a bridge between Quantum processors and PROFIBUS networks, enabling efficient communication and data exchange between devices.

Advantages of data processing, analysis, and visualization
Although the PTQ-PDPS module itself focuses on data transmission and communication, it provides a solid foundation for subsequent data processing, analysis, and visualization. Through efficient data transmission capabilities, the PTQ-PDPS module ensures real-time and accurate data, providing a reliable data source for subsequent data processing.

Users can utilize the powerful computing power of Quantum processors, combined with various data analysis and visualization software, to conduct in-depth analysis of the data transmitted from the PTQ-PDPS module, extract valuable information, and display the analysis results through a graphical interface. This helps operators to quickly understand the system status, identify and solve problems in a timely manner, and improve production efficiency and safety.

Applicable audience and usage methods
intended for:

Industrial automation engineer: responsible for designing and implementing automation control systems.
Maintenance technicians: responsible for daily maintenance and troubleshooting of the system.
Data analyst: Conduct in-depth analysis and mining of system data.
usage method:

Installation and configuration: Install the PTQ-PDPS module onto the backplane of the Quantum processor and connect it to the PC through a serial port for configuration. Use ProSoft Configuration Builder software for module configuration and debugging.
Data mapping: Map input and output data blocks to the module’s data storage according to application requirements.
System integration: Integrate the configured PTQ-PDPS module into the existing automation control system to achieve communication with the PROFIBUS master station equipment.
Data monitoring and analysis: Utilize Quantum processors and data analysis software to monitor and analyze the transmitted data in real-time, extract valuable information, and display it through visual interfaces.
Through the above introduction, we believe that users have a more comprehensive understanding of the PROSOFT PTQ-PDPS module and can better apply it to industrial automation control systems.
