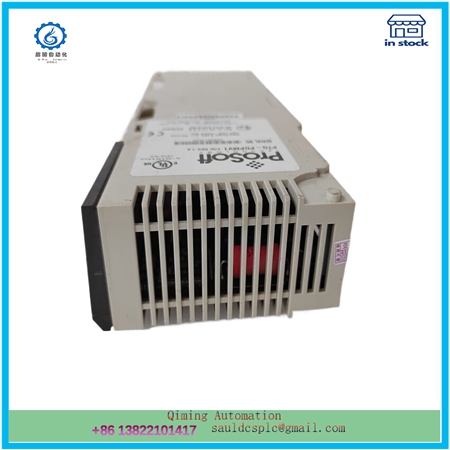

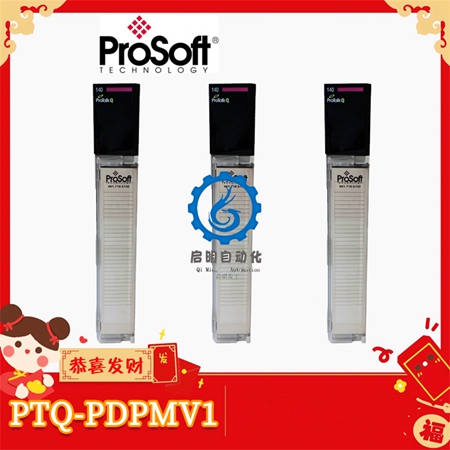

PTQ-PDPMV1 | PROSOFT | communication interface module

Description

PTQ-PDPMV1 | PROSOFT | communication interface module

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

PROSOFT PTQ-PDPMV1 module is a powerful communication interface module widely used in industrial automation and control systems. The following is a detailed introduction to the module:

1、 Module Overview
The PROSOFT PTQ-PDPMV1 module is a PROFIBUS DPV1 master station module designed specifically for the Quantum processor platform, authorized and developed by Schneider Electric. This module integrates proprietary backplane technology, enabling efficient data exchange with processors and supporting complete master station specifications that comply with the IEC 61158 standard.

2、 Main features
Powerful communication capabilities: Supports multiple communication protocols, including PROFIBUS DPV1, enabling interconnectivity with different devices and systems.
High speed data transmission: Supports high-speed data transmission and real-time communication, meeting the real-time requirements of industrial control applications.
Easy to configure and manage: Provides easy-to-use configuration software and interface, making it convenient for users to set parameters, configure functions, and debug programs.
High reliability: Using high-quality materials and components, and undergoing strict production processes and quality control, it has high reliability and stability.
Flexible Expansion: Modular design facilitates users to expand and maintain according to their actual needs.
Industry recognition: Obtained Schneider Electric’s CAPP (Automation Partner Program) certification and PROFIBUS Trade Organization (PTO) certification.

3、 Technical specifications
Compatibility: Compatible with Quantum backboards, supporting Quantum data types 3x and 4x, and capable of high-speed data transmission between backboards.
Configuration software: Comes with configuration software for Microsoft Windows XP, 2000, and NT operating systems.
Rack support: Each rack supports up to 6 PTQ-PDPMV1 modules (hot standby implementation supports up to 4 modules).
Communication interface: Supports multiple communication interfaces such as Ethernet and serial ports.
Protocol support: In addition to PROFIBUS DPV1, other communication protocols such as Modbus, Ethernet/IP, OPC, etc. may also be supported (specific protocol support may vary depending on version or configuration).
