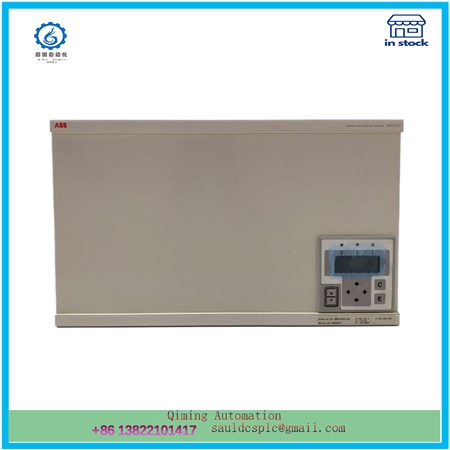

RED670 | ABB protection relay module

Description

The RED670 is a differential protection relay developed by ABB specifically for the protection of transmission lines. Differential protection is a highly effective method used to detect faults in electrical networks, particularly in transmission lines and transformers, by comparing the current entering and exiting a segment of the network.

**Key Features of RED670:**

1. **Differential Protection:** RED670 utilizes differential protection principles to quickly detect any imbalance in the current, which indicates a fault condition such as a short circuit or an earth fault. This involves measuring the currents entering and leaving the protected zone and triggering a trip signal if there is a significant difference.

2. **Flexible Configuration:** The relay is designed to be easily configured to meet various protection schemes and system requirements, providing the ability to adapt to different transmission line configurations and protection strategies.

3. **High Sensitivity and Selectivity:** The relay is capable of detecting very low fault currents, allowing for precise fault detection and minimizing nuisance tripping. Its selectivity ensures that only the affected section of the transmission line is disconnected during a fault condition.

4. **Communication Capabilities:** The RED670 relay supports various communication protocols (like IEC 61850), facilitating integration into modern substation automation systems. This enables remote monitoring and control, as well as interoperability with other devices within the network.

5. **Event Recording and Diagnostics:** The relay provides functionality for recording events and disturbances, which can be crucial for analyzing faults and improving system reliability. This data helps utilities to conduct post-fault analysis and maintenance planning.

6. **User-Friendly Interface:** It typically includes a graphical display and user-friendly menus, making it straightforward for operators to configure settings, monitor system status, and review historical data.

7. **Environmental Robustness:** Designed to operate in demanding electrical environments, the RED670 is robust to temperature variations, humidity, and potential electrical interference.

**Applications:**
The RED670 is suitable for various applications, including:
– Overhead transmission lines
– Underground cables
– Substation connections
– Interfaces between different voltage levels

For optimal performance and implementation, it is important for utility operators and engineers to follow best practices in setting up the relay and understanding its features to ensure reliable and efficient fault protection in their transmission networks.
