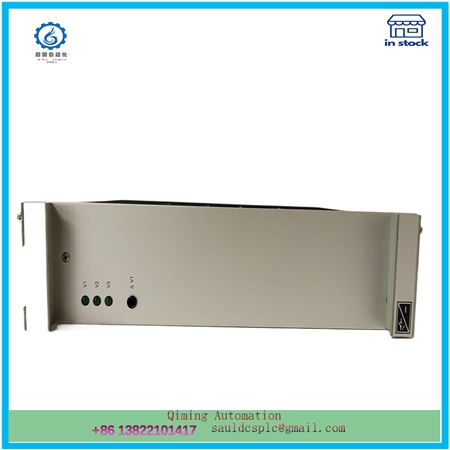

SCHROFF MPS022 13100-203 power supply

Description

The SCHROFF MPS022 13100-203 module is a powerful power supply widely used in industrial control systems and redundant systems. The following is a detailed introduction to this module:

1、 Product features
Wide input voltage range:
This module has a wide input voltage range, ranging from 90VAC to 264VAC and 130VDC to 350VDC, allowing it to operate stably in different voltage environments.
Active Power Factor Correction (PFC):
The use of active power factor correction technology helps to improve the efficiency of power sources, reduce harmonic pollution to the power grid, and reduce energy loss.
Low interference:
The power supply provides a single output voltage and has the characteristic of low interference (low ripple<10 mVPP), providing stable and pure power to the equipment.
Integrated decoupling diode and redundant operation:
Integrated with decoupling diodes and supporting redundant operations (which can be activated), it improves the reliability and stability of the system.
Passive current sharing bus:
Helps to achieve parallel operation of multiple power supplies to provide greater output power.
Signal output:
Provide VME bus signals and normal output voltage signals for easy monitoring and management by users.

2、 Technical specifications
Power: 224W
Height: 6 U
Width: 8,12 HP
Depth: 171.93mm (160 mm circuit board depth)

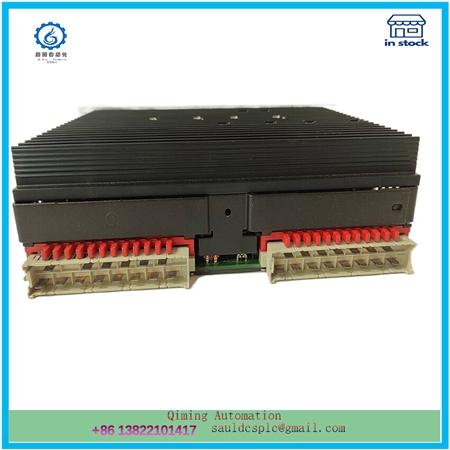

Connection method: Front panel with handle, connector H 15 M (2 pieces)
Encoding strip: 2 pieces, installation
3、 Application scenarios
The SCHROFF MPS022 13100-203 module is suitable for various industrial control systems and redundant systems, such as mechanical equipment industry system spare parts. Its stable working performance and reliable technical specifications make it an important component in the field of industrial automation.

4、 Purchasing and Consulting
The price and supply situation of this module may vary depending on the supplier and order quantity. If there is a purchasing need or further consultation, it is recommended to directly contact the relevant suppliers or manufacturers to obtain the most accurate information and quotation.

5、 Summary
The SCHROFF MPS022 13100-203 module is a high-performance and powerful power supply with features such as a wide input voltage range, active power factor correction, and low interference. Its stable working performance and reliable technical specifications make it widely used in the field of industrial automation.
