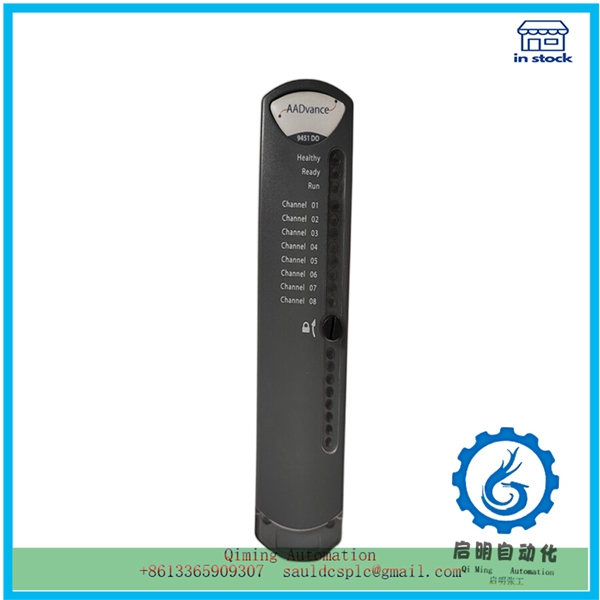

T9451 | ICS TRIPLEX | Supports dual ring topology MODULE
¥9,021.00
Module Number: ICS TRIPLEX T9451
Product staus: Discontinued
Delivery time: In stock
Sales country: All over the world
Product situation: Brandnew , one year warranty
Product Size: 250*235*85mm
We may provide these service :Guidance manual /Datasheet/ Weight/ Size/ Orignal country/ Prodcuct COO & COM & COC
Certificate of conformity / Certificate of Origin / Certificate of Origin /Operation method
Delivery time/ Provide a one-year warranty / Brand New Original Authentic
Contact me: Sauldcsplc@gmail.com +8613822101417 SIMON
Have a good day! Thanks for watching my website!
Introduced Product:
GE VMIVME-7698-345 350-017698-345
WOODWARD 9905-020
EPRO 9200-06110 PR9268/206-100
EPRO 9200-02061n PR6423/003-030
DEIF SCM-1
ABB 3BSE001552R1 SC610
ABB 3BSE008062R1 PM633
ABB 3BSE008799R1 CI627
ABB AI625
ABB DO620
ABB AI610
ABB AO610
ABB DI651
Description
T9451 | ICS TRIPLEX | Supports dual ring topology MODULE
- .Many products are not yet on the shelves please contact us for more products
- .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
- .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible
The T9451 protocol defined by IEC 62439-3 Clause 5 supports dual ring topology and parallel configuration, providing conflict free redundancy without any switching loss. In the event of equipment failure, HSR provides zero time fault switching, making it suitable for applications with very high reliability and extremely short response times. HSR, as a future oriented network redundant communication protocol, has received special attention.
T9451 nodes can form a ring network, and since each node can forward frames from port to port, there is no need for a dedicated switch to work. In the structure of HSR, nodes form a ring, with each node having two identical interfaces, port A and port B. For each C-frame to be sent, the source node sends two copies through port A and port B. Each node will relay the received frames from port A to port B, and vice versa. The target node adopts the first frame (D-frame) of the received pair of frames and discards the copy.
