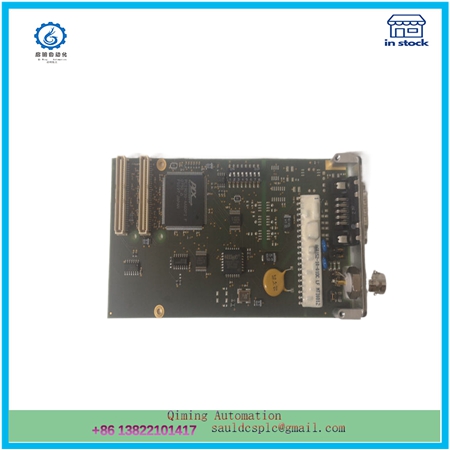

Tews Technologies TPMC815-11 32-Bit PMC Module

Description

Detailed introduction to the TPMC815-11 module of Tews Technologies

The TPMC815-11 module is a high-performance control motherboard card module launched by Tews Technologies. It is based on various industrial standards, such as IndustryPack, PMC, etc., and provides a powerful embedded I/O solution for the industrial automation field.

1、 Function and Features

The standard single width 32-bit PMC module: TPMC815-11 adopts the standard single width 32-bit PMC (PCI Mezzanine Card) design, making it easy to integrate into various industrial control systems.
Complete ARCNET interface: This module is equipped with a complete ARCNET interface using the controller COM20020, supporting high-speed and reliable data communication.
Central Processing Unit (CPU) Integration: A module is typically equipped with one or more central processing units, which are responsible for controlling and coordinating the operation of a system or device, ensuring efficient and accurate task execution.
Multi channel support: TPMC815-11 may be equipped with multiple input and output channels, supporting the connection of multiple sensors and actuators to achieve comprehensive monitoring and control of complex systems.
Multiple protection functions: In order to protect the safety of the module and connected devices, this module is designed with multiple protection functions, including overcurrent protection, overvoltage protection, and over temperature protection.
2、 Advantages and performance

High reliability: The TPMC815-11 module can operate stably in harsh industrial environments, maintaining accurate signal input and output performance, ensuring system continuity and stability.
Programmability: Users can implement different control logic and algorithms through programming according to different application requirements, increasing the flexibility and applicability of the module.

High performance processors: Equipped with high-performance processors, they can achieve fast data processing and control algorithm execution, improving system response speed and accuracy.
Powerful communication capability: Supports multiple communication interfaces, such as Ethernet, serial communication, etc., facilitating data exchange with other devices and systems.
3、 Application scenarios

The TPMC815-11 module is widely used in fields such as industrial automation, process control, and data acquisition. Its powerful functionality and stable performance make it an ideal choice for various systems or device operations that require control and coordination.

4、 Technical parameters and specifications

Interface type: ARCNET
Interface speed: 2.5 Mbps
Power supply voltage: 5 V DC
Working temperature range: -40 ° C to 85 ° C
Storage temperature range: -55 ° C to 125 ° C
Dimensions: 114 mm x 75 mm x 25 mm
(Note: Specific technical parameters may vary due to product updates, please refer to the official documentation for accuracy.)

5、 Instructions for use

The use of the TPMC815-11 module requires coordination with corresponding software and hardware systems. Users should carefully read the product manual before use and follow the manual’s instructions for installation, configuration, and programming. For complex application scenarios, it is recommended to seek the help of professional technical personnel to ensure the security and stable operation of the system.

In summary, Tews Technologies’ TPMC815-11 module has become an important product in the field of industrial automation due to its comprehensive functionality, excellent performance, and wide applicability.
