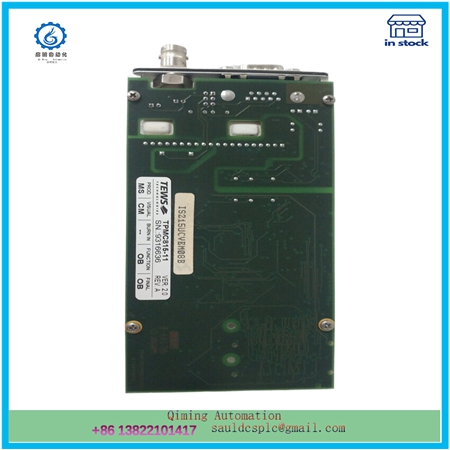

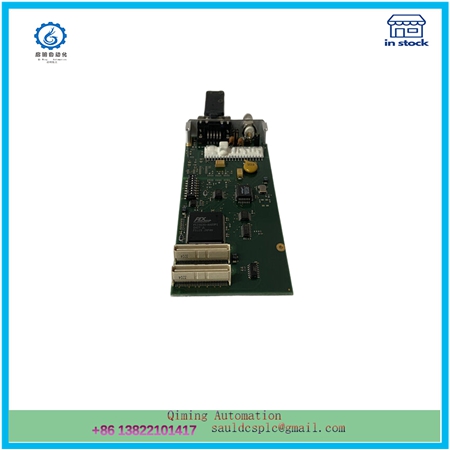

TEWS TPMC815-11 ARCNET Interface Module

Description

The TEWS TPMC815-11 module is an embedded I/O solution module based on multiple industry standards, manufactured by TEWS Technologies. The following is a detailed introduction to the module:

1、 Basic Overview
Manufacturer: TEWS Technologies
Type: Embedded I/O Solution Module
Industry standards: based on IndustriePack, PMC, XMC, CompactPCI, PCI, PCI Express, PCI Express mini cards, VMEbus, PC104+, AMC, MicroTCA, and FMC industry standards
2、 Technical specifications
Module type: Standard single width 32-bit PMC module
Interface: It has a complete ARCNET interface using the controller COM20020, providing a traditional isolated hybrid interface with a maximum speed of 2.5 Mbps (TPMC815-11x model). There is another model TPMC815-21R that provides an isolated RS485 differential drive interface with a maximum speed of 5.0 Mbps.
Compatibility: PCI 2.1 compliant interface, board size of 149 mm x 74 mm
Software Support: Provides software support (such as TDRV007 SW xx) that can be used for different operating systems

3、 Functions and Applications
Function: This module typically includes one or more central processing units (CPUs) used to control and coordinate the operation of a system or device. Has high reliability, can operate stably in harsh industrial environments, and maintain accurate signal input and output performance. It has programmable functions, allowing users to implement different control logics and algorithms through programming to meet different application needs. At the same time, the module also has multiple protection functions, such as overcurrent protection, overvoltage protection, and over temperature protection.
Application: Suitable for various application scenarios that require control and coordination of system or device operations, including but not limited to industrial automation, process control, and data acquisition. Especially suitable for industrial/factory automation and automotive applications.
4、 Other information
Price: The price may vary due to factors such as suppliers, promotional activities, etc. The specific price needs to be negotiated and determined with the merchant.
Origin and Supplier: TEWS Technologies is a private company headquartered near Hamburg, Germany, with over 40 years of design experience, providing industry-leading scope and depth of internal expertise to OEMs and large government clients. At the same time, the module is also sold through some automation equipment suppliers, such as Shenzhen Changxin Automation Equipment Co., Ltd.
In summary, the TEWS TPMC815-11 module is a comprehensive and reliable industrial automation control module that can meet the needs of various industrial applications.
