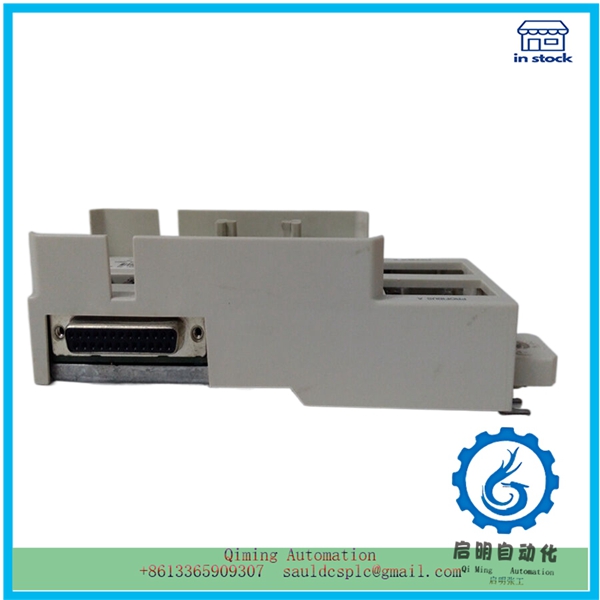

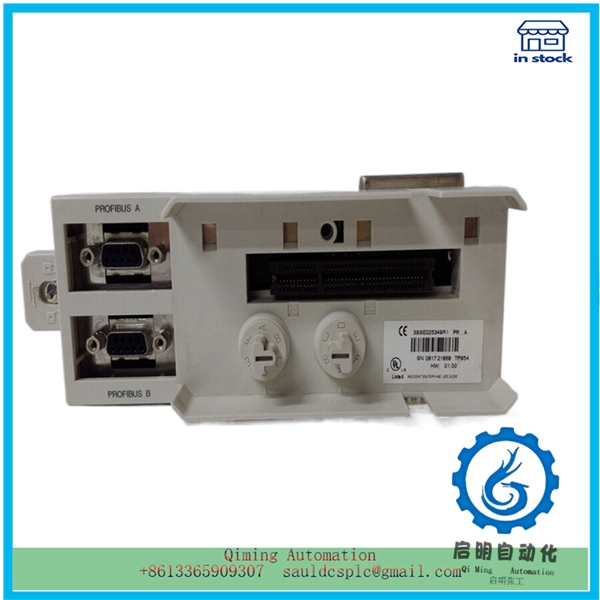

TP854 3BSE025349R1| ABB | Single turn absolute value module

Description

TP854 3BSE025349R1| ABB | Single turn absolute value module

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

A single turn absolute value TP854 3BSE025349R1 is used to measure the various lines of the photoelectric code disk during rotation, in order to obtain a unique encoding. When the rotation exceeds 360 degrees, the encoding returns to the origin, which does not comply with the principle of absolute encoding uniqueness. This encoding can only be used for measurements within a rotation range of 360 degrees, and is called a single turn absolute value encoder.
If you want to measure rotation beyond the 360 degree range, you need to use a multi turn absolute encoder.

Encoder manufacturers use the principle of clock gear machinery. When the central coding plate rotates, another set of coding plates (or multiple sets of gears, multiple sets of coding plates) are driven by gears. On the basis of single TP854 3BSE025349R1 coding, the number of turns is increased to expand the measurement range of the encoder. This type of absolute encoder is called a multi turn absolute encoder, which is also determined by the mechanical position for coding, and each position code is unique and not repeated, And without the need for memory.
Another advantage of TP854 3BSE025349R1 turn encoders is that due to their large measurement range, there is often more margin in actual use. This way, there is no need to struggle to find the zero point during installation, and a certain middle position can be used as the starting point, greatly simplifying the difficulty of installation and debugging.
