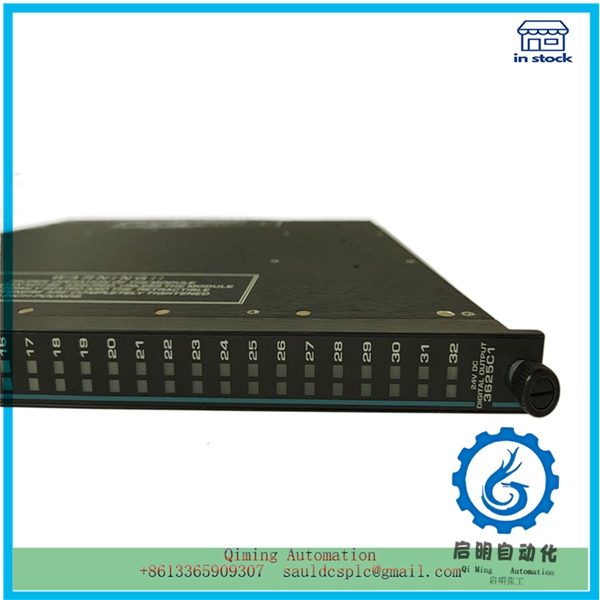

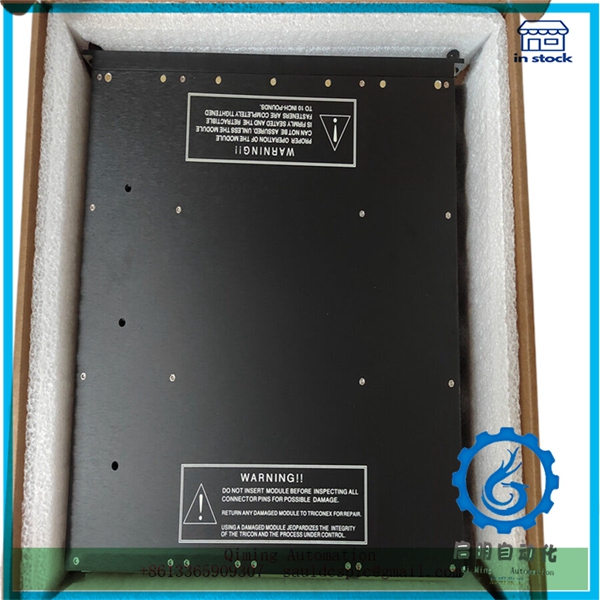

TRICONEX 3625C1 industrial control module

Description

The TRICONEX 3625C1 module is a high-performance industrial control module widely used in process control systems and harsh manufacturing environments in fields such as chemical, petroleum, electronics, aerospace, and electrical engineering. The following is a detailed introduction to this module:

1、 Module Overview
The TRICONEX 3625C1 module is a product under the Triconex/Kongsen brand, known for its high quality, multi-channel digital output, and robust design. As part of the Triconex security system, this module has enhanced functionality, particularly in terms of Security Integrity Level (SIL), providing protection up to SIL 3.

2、 Technical characteristics
Three module redundancy (TMR) architecture:
The TRICONEX 3625C1 module adopts the TMR architecture, with each module containing three identical channels that independently execute application programs and vote on all inputs and outputs through dedicated hardware and software mechanisms to ensure high reliability and security of the system.
High speed communication bus:
The communication (COMM) bus of the 3625C1 module runs at a speed of 2 megabits per second between the main processor and the communication module, ensuring high-speed data transmission and real-time performance.
Power supply design:

The power supply of the chassis is distributed on two independent power rails in the center of the backplane, and each module receives power from the two power rails through a dual power regulator, improving the stability and reliability of the system’s power supply.
Digital input/output function:
Supports multiple types of digital input and output modules, including TMR and individual modules, each containing three independent operating channels, ensuring that faults on one channel do not affect other channels.
The digital output module has optical isolation function, which can reduce the impact of electrical noise and interference on the system.
Enhanced security features:
This module complies with the SIL 3 standard and can provide high-level security and availability in critical mission applications.
The fault protection system ensures timely detection of all faults and forces the measured input values to be in a safe state when input faults are detected.
Easy to operate and maintain:
Compact and economical design, easy to install, configure, and maintain on-site.
Provide integrated online diagnostic functions that can adaptively fix common problems and reduce downtime.
3、 Application field
The TRICONEX 3625C1 module is widely used in industrial fields that require high safety and reliability, such as chemical, petroleum, electronics, aerospace, electrical, etc. In these fields, this module can ensure the stable operation and safe production of process control systems.

4、 Price and Purchase
Due to the wide variety of imported spare parts models and rapid changes in inventory prices, the specific price of the TRICONEX 3625C1 module may vary depending on factors such as suppliers and promotional activities. It is recommended to contact relevant suppliers or distributors before purchasing to obtain the latest quotations and inventory information.

5、 Summary
The TRICONEX 3625C1 module occupies an important position in the field of industrial automation due to its high performance, reliability, and safety. This module adopts advanced TMR architecture and high-speed communication bus technology, which can ensure stable operation of the system in various harsh environments. Meanwhile, its enhanced safety features and easy operation and maintenance make it the preferred product for many industrial enterprises.
