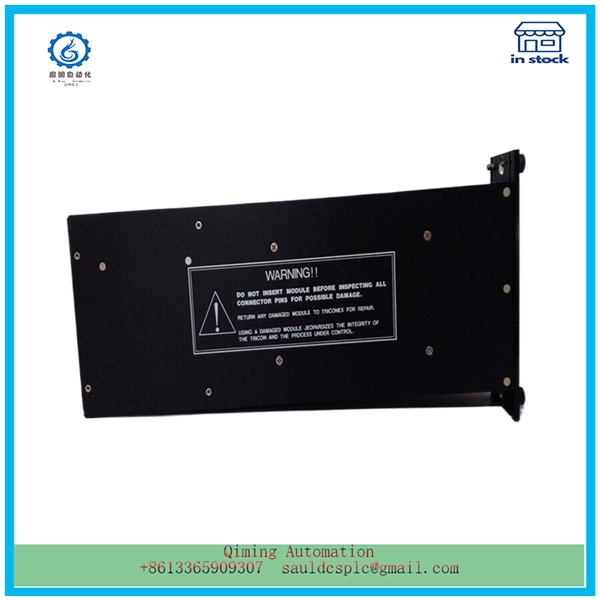

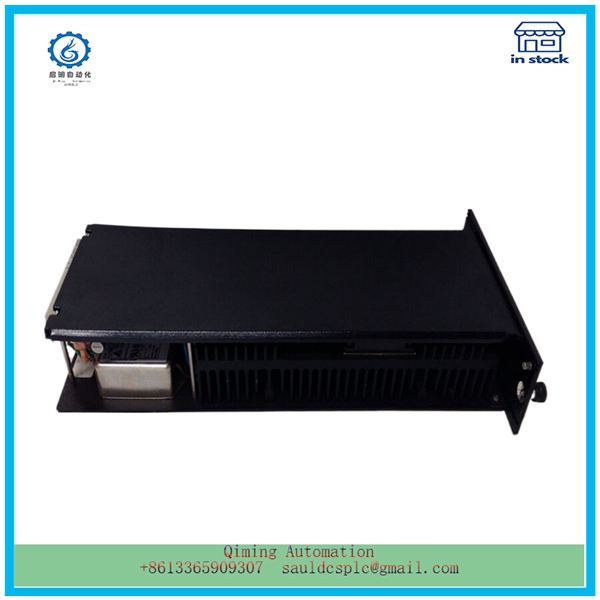

TRICONEX 8312 | TRICONEX | Distributed wireless real-time monitoring method

Description

TRICONEX 8312 | TRICONEX | Distributed wireless real-time monitoring method

1. .Many products are not yet on the shelves please contact us for more products
2. .If there is any inconsistency between the product model and the picture on display, the model shall prevail. Contact us for the specific product picture, and we will arrange to take photos in the warehouse for confirmation
3. .We have 16 shared warehouses around the world, so please understand that it can sometimes take several hours to accurately return to you. Of course, we will respond to your concerns as soon as possible

TRICONEX 8312 system mainly consists of four parts: monitoring center, wireless communication system, on-site monitoring terminal, sensors, and instruments.
Monitoring Center: composed of microcomputers, wireless data transmission machines, omnidirectional antennas, analog screens, and UPS, mainly responsible for real-time collection, monitoring, control, data storage, printing reports, data queries, and other functions of on-site terminal data.

Wireless communication system: Wireless communication is used between the monitoring center and various pump station terminals. The monitoring center is an active station, and other terminal sub stations are passive slave stations. The system uses the data frequency given by the Radio Management Committee to communicate with the slave stations in a point-to-point manner. The TRICONEX 8312 center is an omnidirectional antenna, and each sub station is a directional antenna.
On site monitoring terminal: The core is PLC, which is an intelligent device with its own CPU and control software. It mainly completes on-site data acquisition, conversion, storage, alarm, control and other functions, and TRICONEX 8312 with the monitoring center microcomputer through wireless channels. Complete tasks such as system self check, data transmission, and control output according to the commands from the monitoring center.
